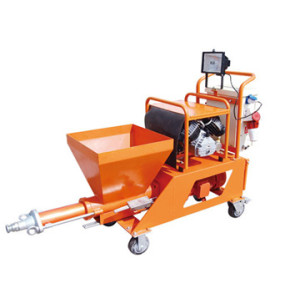

2m3/hr Mortar and Putty Spraying Machine, 150m2/hr Plastering Machine

2m3/hr Mortar and Putty Spraying Machine, 150m2/hr Plastering Machine

2m3/hr Mortar and Putty Spraying Machine, 150m2/hr Plastering Machine
2m3/hr Mortar and Putty Spraying Machine, 150m2/hr Plastering Machine2m3/hr Mortar and Putty Spraying Machine, 150m2/hr Plastering Machine2m3/hr Mortar and Putty Spraying Machine, 150m2/hr Plastering Machine2m3/hr Mortar and Putty Spraying Machine, 150m2/hr Plastering Machine2m3/hr Mortar and Putty Spraying Machine, 150m2/hr Plastering Machine
CategoriesConcrete Spraying Machines
AlbumView larger image
BrandSaintyol DAWIN Machinery
ModelN2
Spraying Capability2m3/hr and 3-5m3/hr model
Motor4KW and 7.5KW Model
PowerElectric or Diesel Engine in options
Spraying Speed150m2/hr and 240m2/hr
Max. Allowed Aggregates≤4mm
Download DOC
Update Time2020-09-18
Detail Information
Instruction:

The plastering machines are also called spraying machines, spraying pumps, shotcrete machines, etc. This series of plastering machines are new energy-saving, environmentally friendly construction machinery, researched and improved based on German advanced technology.

Thanks to our perfect design and outstanding techniques, we make out this series of reliable, high adaptable, durable and simple spraying machine sets, which are praised by friends of every walk as well as supported and promoted by regarding leaderships.

Nowadays, there are lots of CS board, SB board, polystyrene board, polyphenyl particle board, etc in sound insulation and heat preservation systems on the market. It is easy to handle the mortar surface of these halftones with this machine, and meantime can reach good rigidity and good adhesion, no hollowing and crack. However, if handle that with manual, it will be difficult and meantime makes a low rigidity and binding strength, often result in hollowing, crack, etc.
The mixture ratio of raw materials

Due to region diversity, the cement and sand are different. According to the national standard ratio of 1:3 and considering the operation of our machine, the ratio is listed as following:



Item

Cement

Sea sandfine sand

River sandmiddle sized sand

Lime (L/hopper)

For rendering layer

1

1.5

1.5

0.5

For surface layer

1

3

0.5



Remark: the grain diameter should be less than 3mm



The personnel needed in operation: one person fills material, one person operates the gun to spray, another person does some assistant work (for instance: assistant to remove the hose), one person mixes the material.



To avoid the mortar solidifying in the pipe during the working break, this machine is installed with automatic recycling spraying system (e.g. recycling once per 5 minutes, 30 second per time, the break time can be adjusted manually), so that make sure the nozzle-type machine will not be blocked, ensure a normal running. This machine is installed safety operation control system. Whichever process breaks out a fault, the equipment will stop working automatically. In this way, it ensures the safety of not only the operator but also the machine itself, meantime promptly reminding the operator to shoot the trouble, saving as much time as possible.



5. Operation process



Keeping the air pump running for 2-5 minutes after turn on the machine (heating up the grease lubrication to make the air pump work normally), then add the mixture of water and cement into the hopper (to lubricate the hose), then add the normal material to start working.



When finishing the work, the machine should be cleaned. Clean the material in the hopper with water out of the hose, until the clean water flow out. Then dismantle the hose, at last hang the hose vertically, clean the sand in the inner surface of the hose with clean water.



Remark: when you start the machine, turn on the air pump at first, then the   material; but when turn off the machine, you should stop the material first then the air pump, in case that the air hole of the spraying gun is blocked.



6. Applicable materials



Normal mortars, insulation mortars, dry mortars, anti-crack mortar, interface agents, construction glues, bonding agents, anti-fire materials, epoxy coating, etc.



7. Applicable construction projects

Surface agents, normal mortar rendering, halftones spraying, terrace grouting, anti-fire and anti-corrosive coatings, some high-density coatings, etc.

Specifications:

Model

N2 semi-automatic

Voltage

380V/220V

Power

4KW

Delivery capacity

2m3/hr

Delivery pressure

30-60 bar

Delivery distance

0-100m

Delivery height

30m

Maximum aggregate diameter

4mm

Hopper capacity

50L

Maximum length of delivery hose

100m

Weight

150kg

CTN’s Dimension

1570mm*500mm*1000mm



Accessories

15m delivery hose, 1 high pressure gun, 1 low pressure gun, 16m air hose, 20m manual operation wire, key for control box, instruction book, sponge balls, screw and nuts, etc.

Model

N5 semi-automatic

Voltage

380V/220V

Power

7.5KW

Delivery capacity

3-5m3/hr

Delivery pressure

50-80 Bar

Delivery distance

0-100m

Delivery height

30m

Maximum aggregate diameter

4mm

Hopper capacity

50L

Maximum length of delivery hose

100m

Weight

260kg

CTN’s Dimension

1700mm*550mm*900mm



Accessories

15m delivery hose, 1 high pressure gun, 1 low pressure gun, 16m air hose, 20m manual operation wire, key for control box, instruction book, sponge balls, screw and nuts, etc.

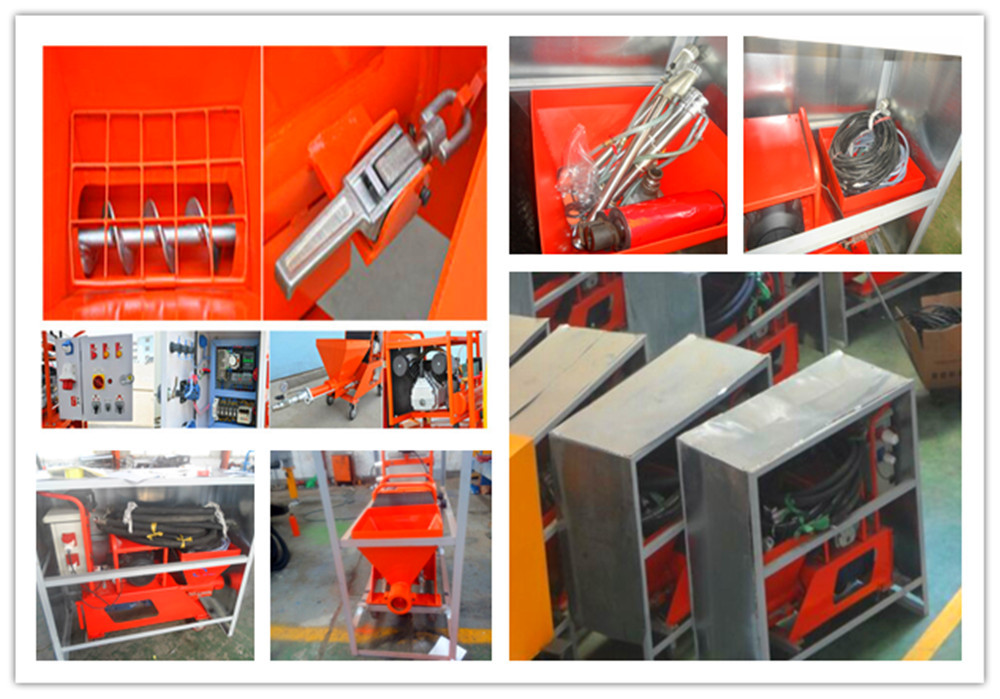

Packing & Shipping:
