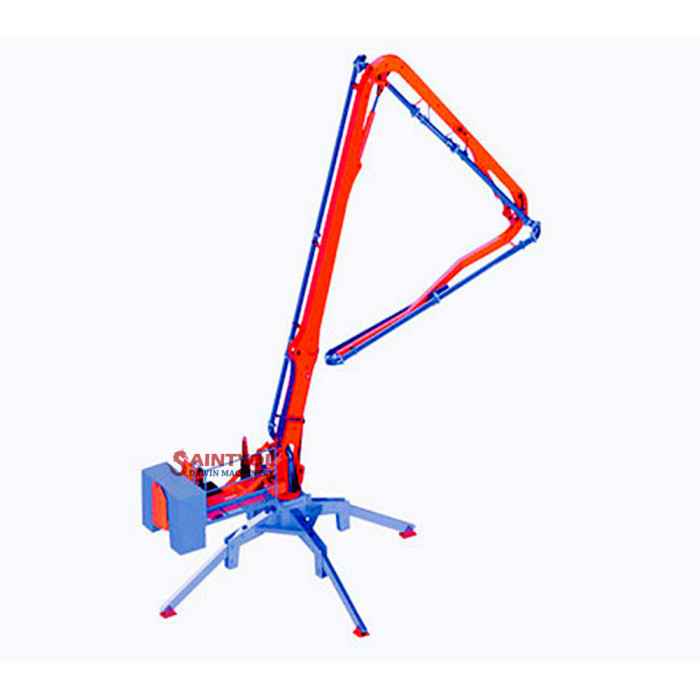

15m 3 Sections Trailer Mobile Spider Hydraulic Concrete Placing Boom

15m 3 Sections Trailer Mobile Spider Hydraulic Concrete Placing Boom

15m 3 Sections Trailer Mobile Spider Hydraulic Concrete Placing Boom
15m 3 Sections Trailer Mobile Spider Hydraulic Concrete Placing Boom15m 3 Sections Trailer Mobile Spider Hydraulic Concrete Placing Boom15m 3 Sections Trailer Mobile Spider Hydraulic Concrete Placing Boom15m 3 Sections Trailer Mobile Spider Hydraulic Concrete Placing Boom15m 3 Sections Trailer Mobile Spider Hydraulic Concrete Placing Boom
CategoriesConcrete Placing Boom
BrandSaintyol DAWIN Construction Machinery Manufacturer
ModelHGY13 15 17
Placing Radius13m 15m 17m
Motor4KW 5.5KW
Folding Section3
Drive ModelFull Hydraulic
ValveProportional & Manual Lever
ControlWireless Remote
Trailer System4 Wheels
Delivery PipeDN 125mm
OutriggersFoldable & detachable
FOB portQingdao
Terms of PaymentL/C, T/T
Download
Update TimeOct 5,2024
Detail Information
15m mobile spider hydraulic concrete placing boom

Saintyol DAWIN machinery concrete placing boom is featured by Excellent quality, high efficiency, rapid installation and 360° rotation. The concrete placing booms prove their worth in various applications including high rise buildings, nuclear power plants, railways, bridge, etc.

Separate concrete placing booms can be used when a boom truck is unavailable, or in situations where the boom truck may not be able to conveniently access the pour site.

Combined with the right concrete pump, these placing booms provide a systematic method of concrete distribution.

For instance, contractors use the truck-mounted pump with placing boom in its conventional mode for part of a day on slab pours or other ground level placements and quickly remove the boom (with the aid of a tower crane) for remote placements later in the day. Typically, the boom is remounted on a pedestal, which can be located hundreds of feet from the pump and connected with a pipeline.

Saintyol DAWIN machinery 3 section Spider placing boom is a practical and economical solution for placing concrete in hard to reach areas. If an area can't be reached by a truck mounted or stationary concrete pump, this is a perfect solution.

The Spider placing boom is easily installed on the jobsite and can connected to any of our boom pumps. This helps pour large areas without needing to work with the traditional heavy line systems
Features:
A.Auto robot cordless remote control system.

B.Proportional valve, manual levers and control system in options to ensure the placing boom could work normally in any conditions when meet problems or not.

C.Crack detection in welding manufacturing process to keep each concrete placing boom would be in safe working on job sites before shipping.

D.Labors saving.The robot concrete placing boom with cordless remote control foldable arms section, 13m is "Z" shape, 15m and 17m are "R" shape, 21m and 23m are 4 sections "M" folding, very effective in light weight and labor saving on job sites.One man to control it easily.

E.Less wearing parts.There is no extra wearing parts to the concrete placing booms except for 1 year life changing the hydraulic oil filter and the delivery pipes in 50000m3 and more.

F.Easier transportation and installation. The trailer mobile concrete placing boom could be separated in several smaller pares to be lifted by crane on job sites and installed in short time.

G.Concrete pump partner. the concrete placing boom is the right end solution of concrete pumping system, it could be moved and touch to the every place sites on the jobs platforms.

H.Short manufacturing time.Trailer mobile concrete placing from Saintyol DAWIN machinery there would be common stocks to HGY13 HGY15 and HGY17 models, orders could be short into 15 days or less.
Specifications:

PLACING RADIUS

15000mm

PLACING HEIGHT

 17390mm

PLACING DEPTH

10300mm

BOOM ARM ELEVATION TRAVEL

0°~90°

SLEWING RANGE

360°

HYDRAULIC SYSTEM POWER

 4kW

WORKING PRESSURE

20MPa

SLEWING SPEED

0.2~0.3r/min

CONCRETE PIPE DIAMETER

φ125×4

RUBBER HOSE

 3m

OUTRIGGER SPAN

4000×4000mm

TOTAL WEIGHT

4500kg

COUNTERWEIGHT

 2×1100kg

THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL VERTICAL FORCE

67kN



THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL FEET SUPPORT REACTION

45kN



OVERALL DIMENSION

8900×4000×2585mm

Drawing & Working Range:
15m mobile concrete placing boom
Each Part Weight:
15m mobile hydraulic concrete placing boom
Job Site Performance:
mobile spider concrete placing boom job site
Testing & Working Video:
Concrete Placing Boom E-Brochure
