15m Trailer Mobile Spider Concrete Placing Boom

15m Trailer Mobile Spider Concrete Placing Boom
15m Trailer Mobile Spider Concrete Placing Boom
15m Trailer Mobile Spider Concrete Placing Boom15m Trailer Mobile Spider Concrete Placing Boom15m Trailer Mobile Spider Concrete Placing Boom15m Trailer Mobile Spider Concrete Placing Boom15m Trailer Mobile Spider Concrete Placing Boom
CategoriesConcrete Placing Boom
AlbumView larger image
BrandSaintyol DAWIN Machinery
ModelHGY13 15 17
Placing Radius13m 15m 17m
Motor4KW 5.5KW
Folding Section3
Drive ModelFull Hydraulic
ValveProportional & Manual Lever
ControlWireless Remote
Trailer System4 Wheels
Delivery PipeDN 125mm
OutriggersFoldable & detachable
Terms of PaymentL/C, T/T
Update Time2020-04-02
Detail Information

Saintyol DAWIN machinery placing boom is featured by Excellent quality, high efficiency, rapid installation and 360° rotation. The concrete placing booms prove their worth in various applications including high rise buildings, nuclear power plants, railways, bridge, etc.

Separate concrete placing booms can be used when a boom truck is unavailable, or in situations where the boom truck may not be able to conveniently access the pour site.

Combined with the right concrete pump, these placing booms provide a systematic method of concrete distribution.

For instance, contractors use the truck-mounted pump with placing boom in its conventional mode for part of a day on slab pours or other ground level placements and quickly remove the boom (with the aid of a tower crane) for remote placements later in the day. Typically, the boom is remounted on a pedestal, which can be located hundreds of feet from the pump and connected with a pipeline.

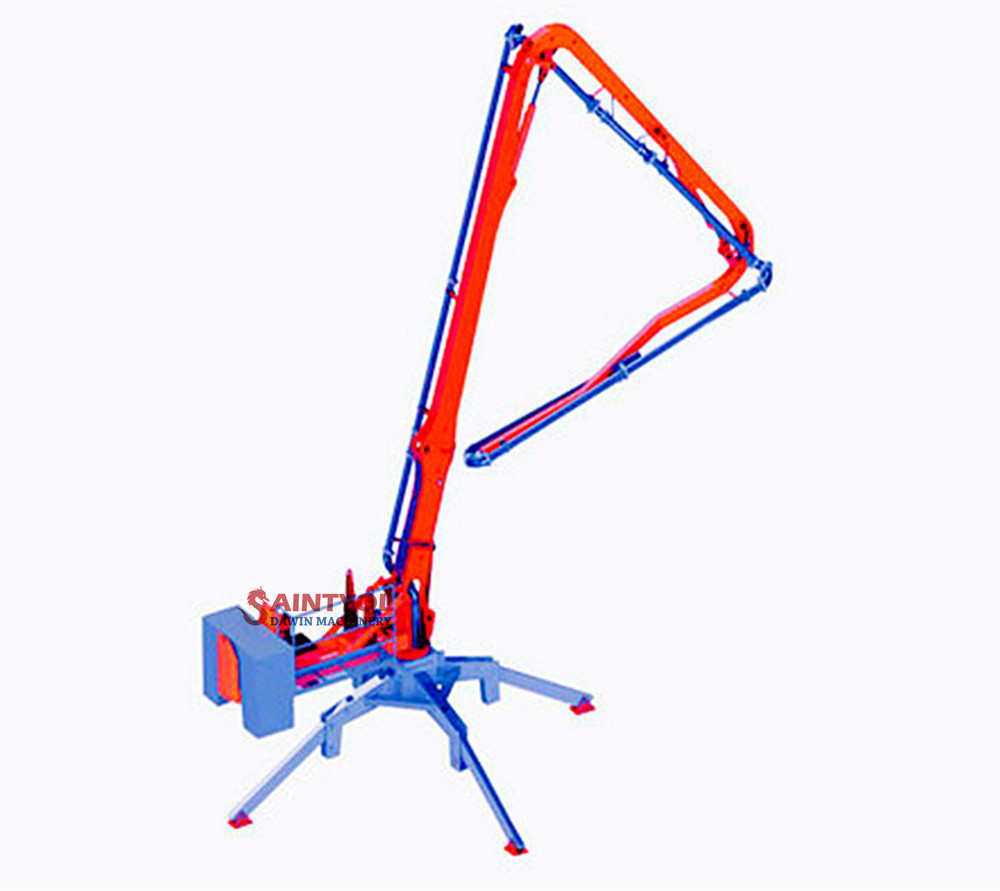

Saintyol DAWIN machinery 3 section Spider placing boom is a practical and economical solution for placing concrete in hard to reach areas. If an area can't be reached by a truck mounted or stationary concrete pump, this is a perfect solution.

The Spider placing boom is easily installed on the jobsite and can connected to any of our boom pumps. This helps pour large areas without needing to work with the traditional heavy line systems
Specifications:

PLACING RADIUS

15000mm

PLACING HEIGHT

 17390mm

PLACING DEPTH

10300mm

BOOM ARM ELEVATION TRAVEL

0°~90°

SLEWING RANGE

360°

HYDRAULIC SYSTEM POWER

 4kW

WORKING PRESSURE

20MPa

SLEWING SPEED

0.2~0.3r/min

CONCRETE PIPE DIAMETER

φ125×4

RUBBER HOSE

 3m

OUTRIGGER SPAN

4000×4000mm

TOTAL WEIGHT

4500kg

COUNTERWEIGHT

 2×1100kg

THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL VERTICAL FORCE

67kN



THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL FEET SUPPORT REACTION

45kN



OVERALL DIMENSION

8900×4000×2585mm

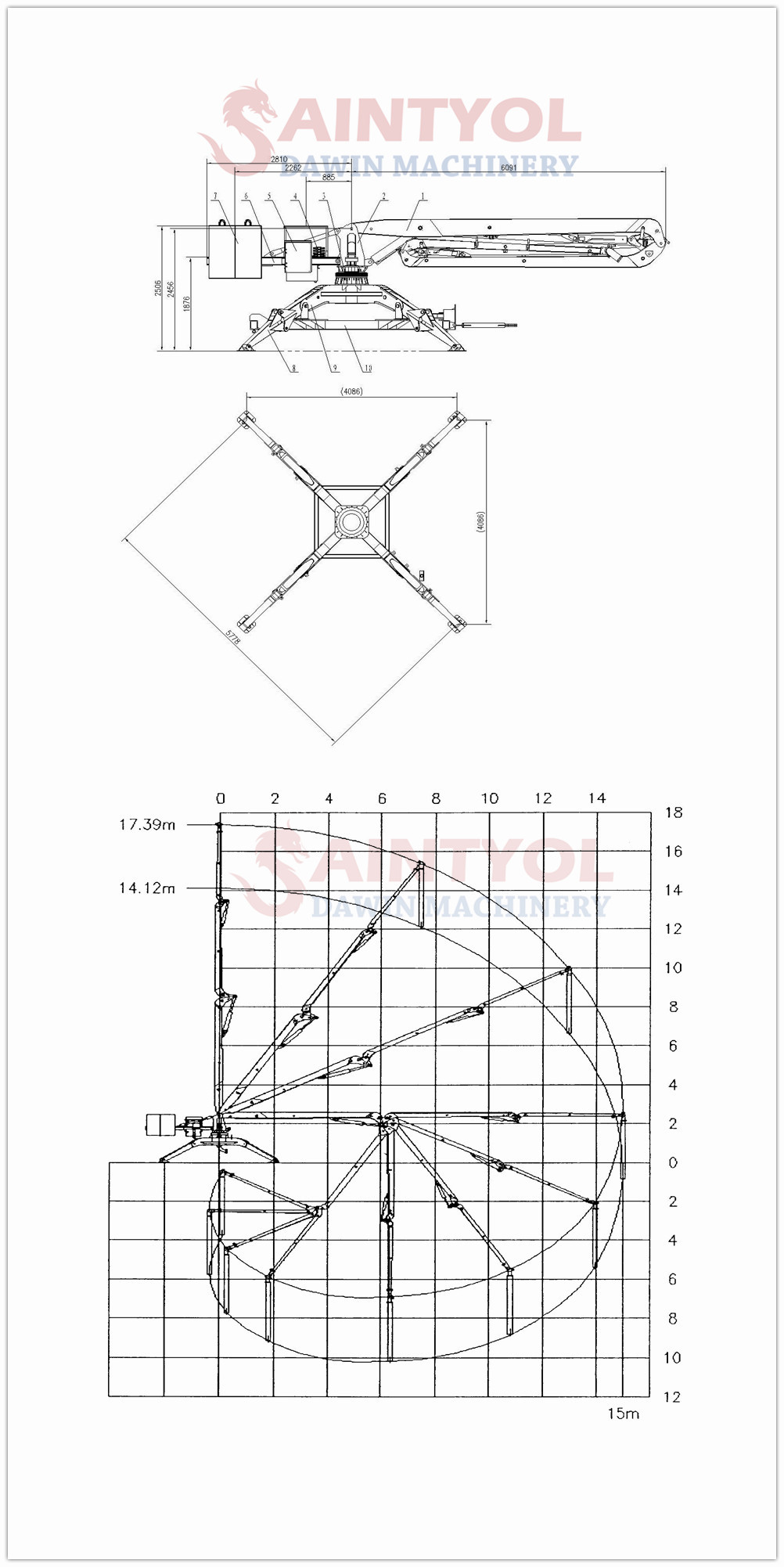

Drawing & Working Range:

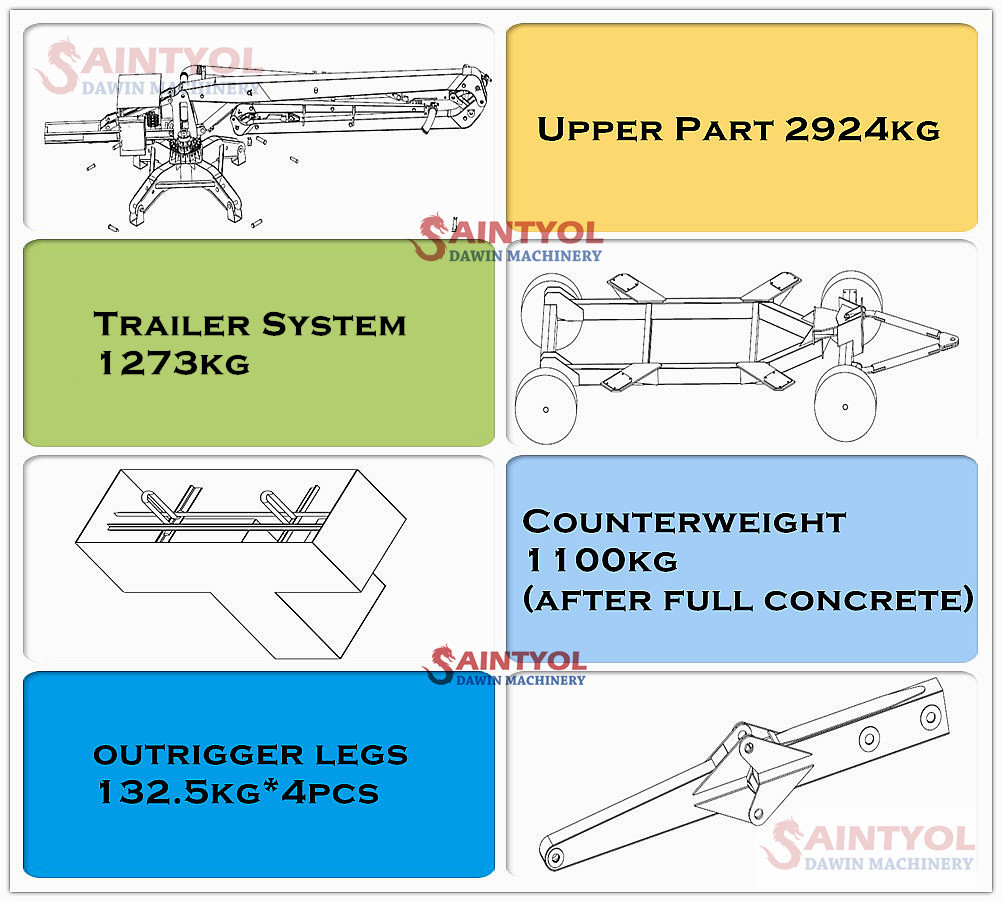

Each Part Weight:

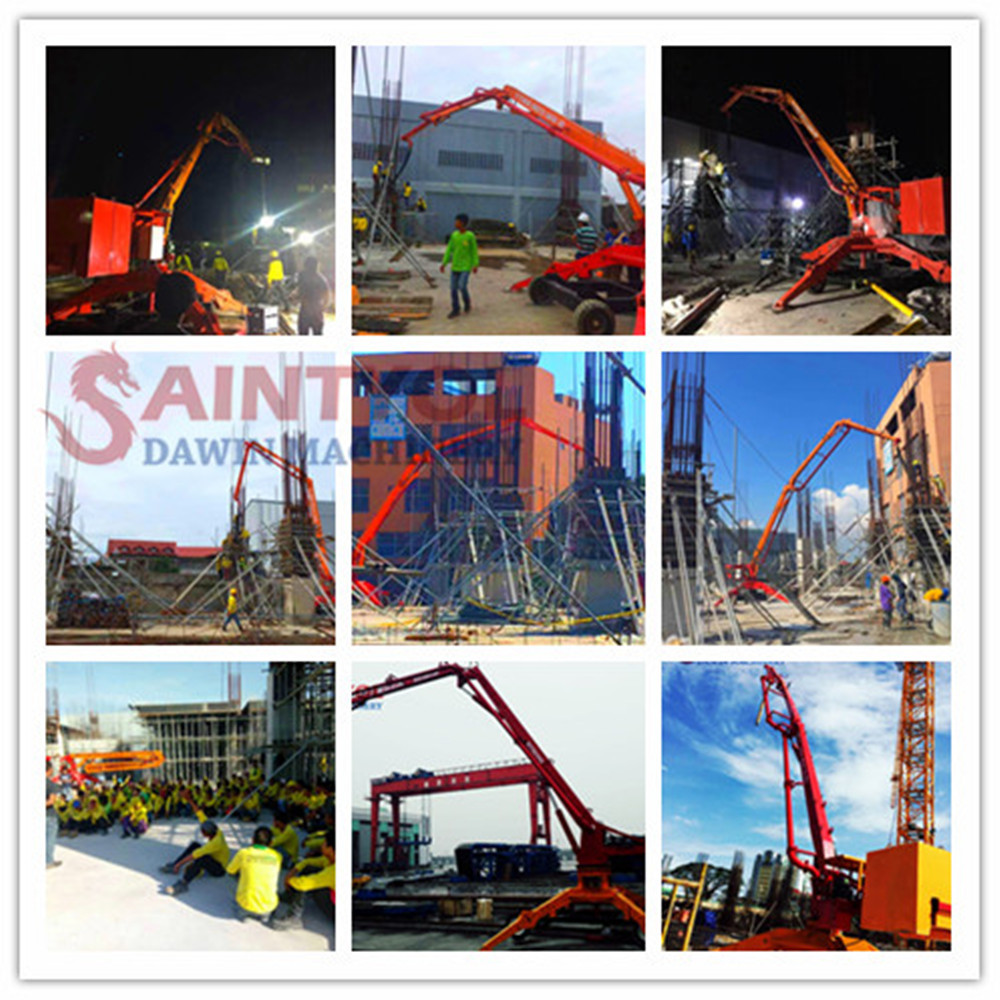

Job Site Performance:
Testing & Working Video:
