17m Trailer Mobile Spider Concrete Placing Boom

17m Trailer Mobile Spider Concrete Placing Boom

17m Trailer Mobile Spider Concrete Placing Boom
17m Trailer Mobile Spider Concrete Placing Boom17m Trailer Mobile Spider Concrete Placing Boom17m Trailer Mobile Spider Concrete Placing Boom17m Trailer Mobile Spider Concrete Placing Boom17m Trailer Mobile Spider Concrete Placing Boom
CategoriesConcrete Placing Boom
AlbumView larger image
BrandSaintyol DAWIN Machinery
ModelHGY17
Motor5.5KW
ControlWireless Remote
Placing Radius17m
Boom Sections3
CertificatesCE , SafeWork
Weight6200kg
FOB portQingdao
Terms of PaymentL/C, T/T
Download DOC
Update Time2020-09-18
Detail Information
 HGY17 spider hydraulic concrete placing boom
17m mobile hydraulic spider concrete placing boom
Instruction:

This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.

1. HGY spider hydraulic concrete placing boom can be placed according to needs of field pouring;
2. Compact structure, light weight, and can be hoisted and transported as a complate part;
3. Flexible, mobile placing boom is being widely useD and applicable for complex construction site;
4. Easy operation, safe and reliable, economical and practical.
Features:
A.Auto robot cordless remote control system.

B.Proportional valve, manual levers and control system in options to ensure the placing boom could work normally in any conditions when meet problems or not.

C.Crack detection in welding manufacturing process to keep each concrete placing boom would be in safe working on job sites before shipping.

D.Labors saving.The robot concrete placing boom with cordless remote control foldable arms section, 13m is "Z" shape, 15m and 17m are "R" shape, 21m and 23m are 4 sections "M" folding, very effective in light weight and labor saving on job sites.One man to control it easily.

E.Less wearing parts.There is no extra wearing parts to the concrete placing booms except for 1 year life changing the hydraulic oil filter and the delivery pipes in 50000m3 and more.

F.Easier transportation and installation. The trailer mobile concrete placing boom could be separated in several smaller pares to be lifted by crane on job sites and installed in short time.

G.Concrete pump partner. the concrete placing boom is the right end solution of concrete pumping system, it could be moved and touch to the every place sites on the jobs platforms.

H.Short manufacturing time.Trailer mobile concrete placing from Saintyol DAWIN machinery there would be common stocks to HGY13 HGY15 and HGY17 models, orders could be short into 15 days or less.
Specification:

CONCRETE PIPE DIAMETER

Φ125mm

PLACING RADIUS

 17m

BOOM ARM ELEVATION TRAVEL

-4°~90°

SLEWING RANGE

 360°

RUBBER HOSE

3m

HYDRAULIC SYSTEM POWER

5.5KW

WORKING PRESSURE

20Mpa

SLEWING SPEED

0.2~0.3r/min

TOTAL WEIGHT

 6200㎏

COUNTERWEIGHT

2200kg

TOTAL HEIGHT

3400mm

THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL VERTICAL FORCE

104kN

THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL FEET SUPPORT REACTION

69.6kN

HGY17 Drawing & Working Range:
17m mobile hydraulic spider concrete placing boom

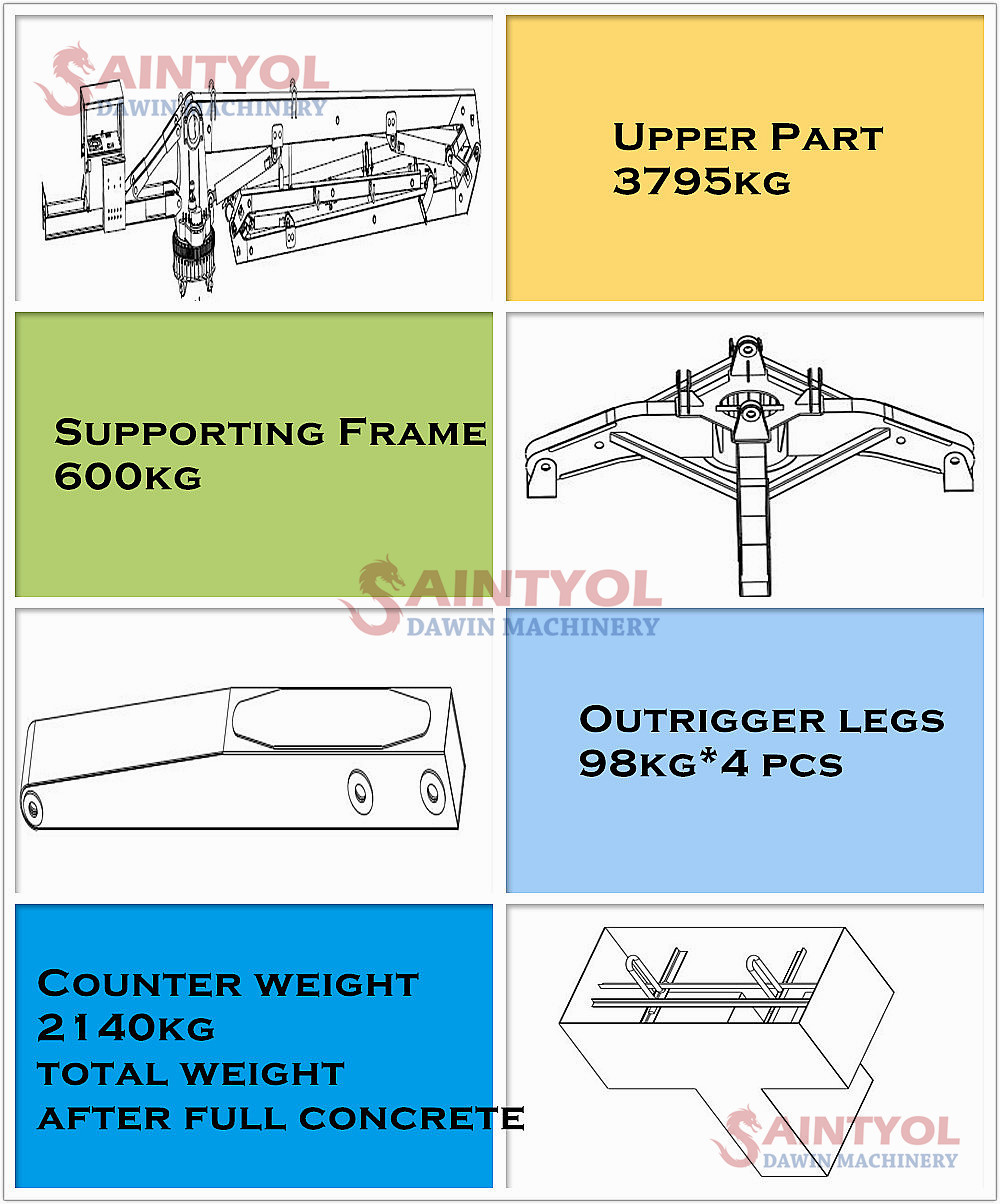

HGY17 Each Part Weight:
concrete placing boom each parts weight

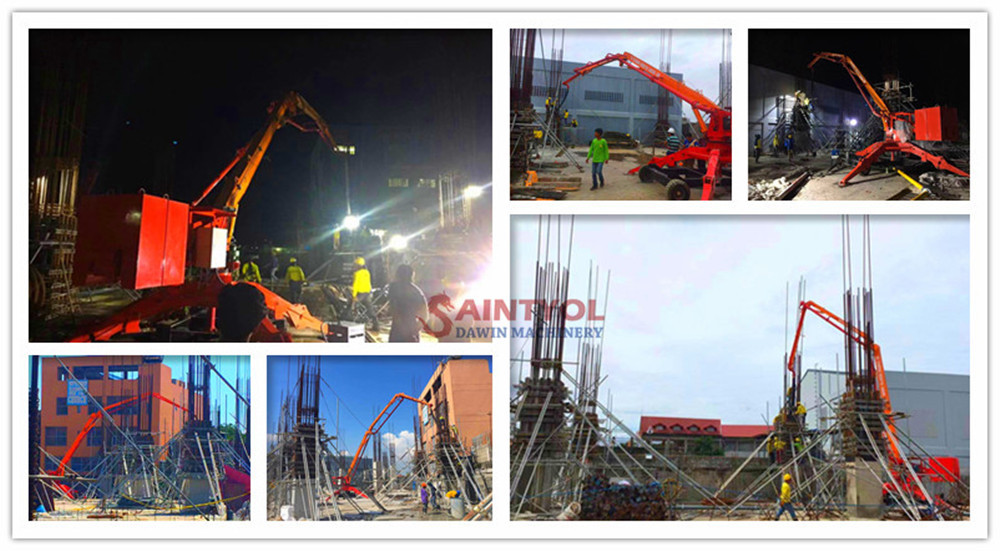

Job Sites Works:
spider concrete placing boom job site work
