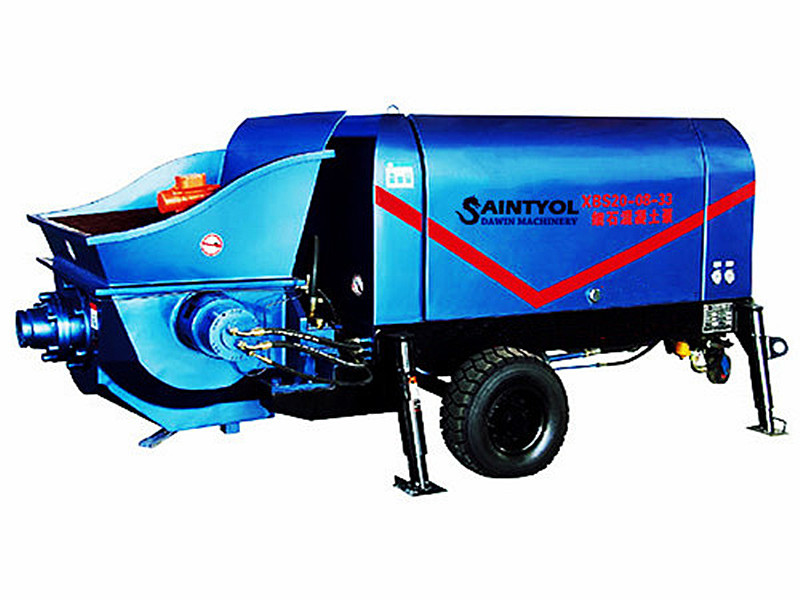

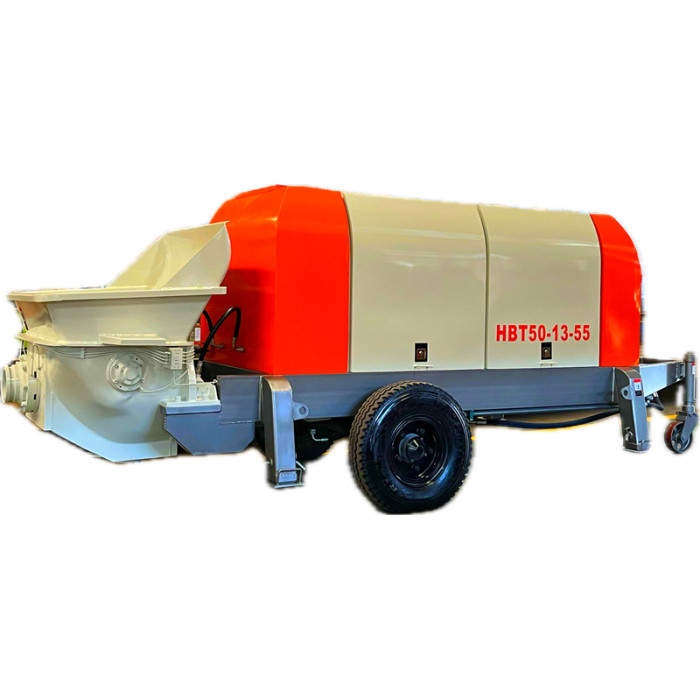

40m3/hr Trailer Concrete Pump With Diesel or Electric Power

40m3/hr Trailer Concrete Pump With Diesel or Electric Power

40m3/hr Trailer Concrete Pump With Diesel or Electric Power
40m3/hr Trailer Concrete Pump With Diesel or Electric Power40m3/hr Trailer Concrete Pump With Diesel or Electric Power40m3/hr Trailer Concrete Pump With Diesel or Electric Power40m3/hr Trailer Concrete Pump With Diesel or Electric Power40m3/hr Trailer Concrete Pump With Diesel or Electric Power
CategoriesTrailer Concrete Pumps
BrandSaintyol DAWIN Construction Machinery Manufacturer
ModelD/HBT40S
Pumping Capability40 cubic meter per hour
ValveS shape
Loading Hopper600L
Engine56KW Lovol
Pumping Horizontal Distance570m
Pumping Vertical190m
Delivery Pressure110 Bar
FOB portQingdao Shanghai Tianjin
Terms of PaymentL/C, T/T
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information
concrete pump
Instruction:


Concrete Pump was a kind of useful and efficient concrete high pressure transport pump, widely used in highway, railway, bridge, building, tunnels, ports, water conservancy and other projects of grouting pressure, grouting mortar, concrete, large particle slurry grouting, spraying work, has the working pressure, pumping ability strong, grouting with high efficiency, smooth coating, using solid, etc.


Saintyol DAWIN Machinery Concrete pump design is light, easy to move, suitable for small and middle construction projects.


The S-valve series concrete pump is a new generation product developed by combining latest technologies both at home and abroad.


The products have passed ISO9001-2008 quality management system certification and CE certification.


Our workers strictly control all the machining processes and assembly quality, give final test to every pump by simulation working conditions and overload experiments to ensure customers zero fault as first operation.

Features:
1. Intelligent power control system to regulate the engine speed automatically, for smooth and efficient operation
2. Plunger pump with constant power, to ensure the efficiency of main engine
3. Good sealing S-valve, installed with floating wear resistant ring
4. High-quality wear resistant alloy components for long service-life
5. High delivery pressure for demand of high-rise and long distance projects
6.Air cooling system, without dependence of external water
7. PLC system to ensure best control performance
8. With re-pumping function to smooth construction of better accessibility
9. Saintyol DAWIN Concrete Pumps Equipped with wired remote controller, easy to operate
Diesel DXBS40S-11-56 Specifications:

Item

Unit

Parameter

Pumping system

Theoretical max. discharging volume

m³/h

40

Theoretical max. delivery pressure

M pa

11

Max. delivery frequency

times/min

32

The type of distribution valve



S tube valve

Specification of delivery cylinder

mm

141200

Specification of main oil cylinder

mm

Φ100×Φ50×1200

Oil tank capacity

L

200

Outlet opening diameter

mm

Φ125

Inner dia. of delivery pipe

mm

Φ100(Φ80)

Diesel engine power

KW

56 KW  (1004-4 Lovol Engines)

Rated speed

r/min

2200

Hydraulic system

Hydraulic oil circuit type



Open circuit

Max. oil pressure of pumping system

M Pa

25

Max. oil pressure of mixing system

M Pa

9

Max. mixing speed

r/min

40

Max. diameter of aggregates

mm

30

Outlet dimension (length ×width ×height)

mm

4500×1500×1720

Weight

Kg

2700

Pulling speed

Km/h

≤8

Theoretical Max. delivery distance

horizontal

570 m

vertical

190m

Electric XBS40-11-45 Specifications:

 Item

Unit

 Parameters

Whole machine performance

Theoretical max. delivery volume

m³/h

40

Theoretical max. delivery pressure

Mpa

11

Max. delivery frequency

/min

30

The type of distribution valve



S tube valve

Specification of delivery cylinder

mm

Φ140×800

Specification of main oil cylinder

mm

Φ80/Φ50×800

Outlet opening diameter

mm

Φ125

Hopper capacity

L

300

Power system

Rated voltage

V

380

Main motor power

Kw

45

Rated speed

r/min

1470

Assistant motor power

Kw

3

Rated speed

r/min

1430

Hydraulic system

Hydraulic oil circuit type



Open circuit

Max. oil pressure of pumping system

MPa

25

Max. oil pressure of mixing system

MPa

9

Max. mixing speed

r/min

24

Oil tank capacity

L

200

Other parameters

Max. diameter of aggregates

mm

25

Inner dia. of delivery pipe

mm

Φ80

Dimension

(length×width×height)

mm

4300×1500×1500

Overall weight

Kg

2100

Pulling speed

Km/h

≤8

Main Parts:

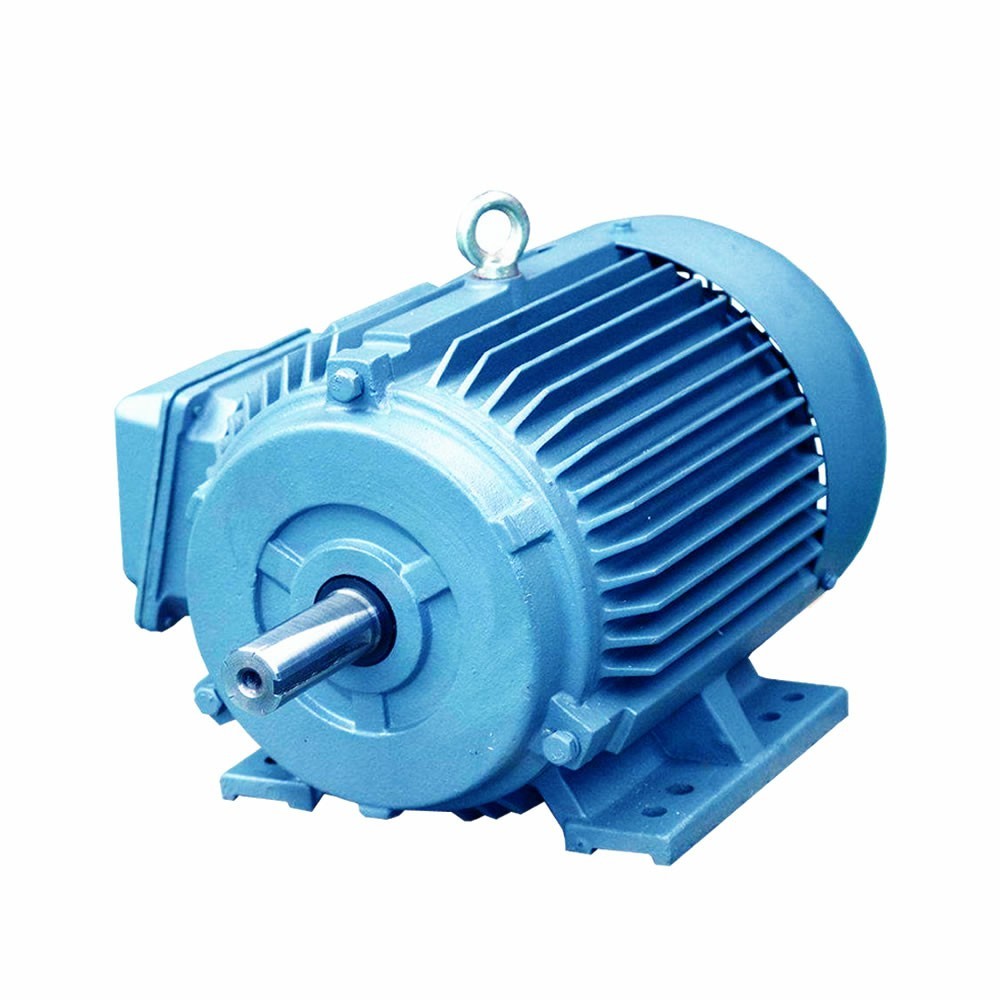

concrete pump motor
Electric Motor

Name: BEIDE Motor
Brand: Semens
Original: Germany
Famous engines at home and abroad, Yantai Motor and Beide Motor of Siements. which have a strong driving force, low fuel consumption and high efficiency.

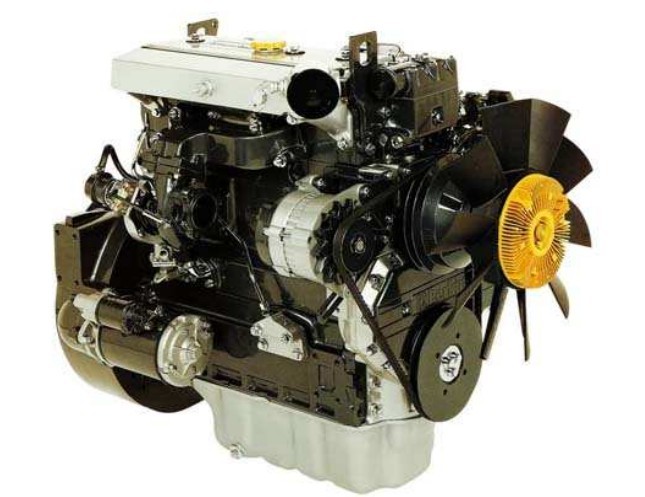

concrete pump diesel engine
Diesel engine

Brand: Tianjin LOVOL/ Yuchai /Weichai/Cummins
Diesel engine adopts Tianjin LOVOL or Yuchai  or Weichai or Cummins as custom request, which has low energy consumption and high efficiency.
concrete pump pumping system
Pumping System

Concrete pump pumping system is the core technologies of Saintyol DAWIN Machinery,

DN140mm, 180mm, 200mm and 230mm large diameter cylinder, absorb good, pumping large displacement.

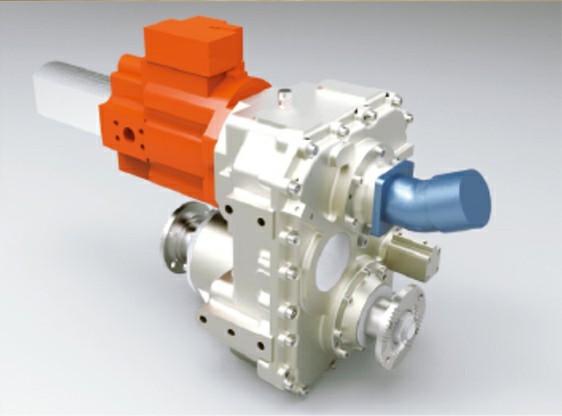

concrete pump main oil pump
Main Oil Pump

Main oil pump adopts joint venture brand constant power variable plunger pump. Constant power control is effective to prevent the electromotor or diesel engine form overloading. It can withstand higher pressure and load than ordinary gear pump.

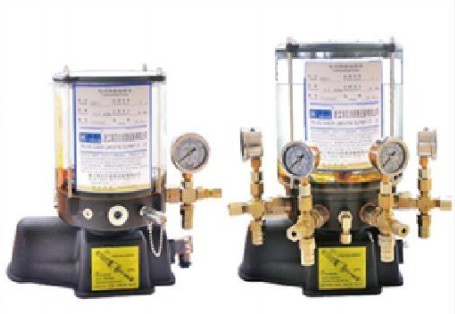

concrete pump hydraulic system
Centralized lubricating system

The lubricant will be injected to the main oil line by the plunger pump and distributed to each lubrication point by the distributor. Point-to-point lubrication protects main components from wear and tear.
concrete pump cooling system
Cooling System

It adopts dual-cooling system, with cooling and water cooling, not only for hot climate but also for cold climate; it can effectively control the oil temperature of hydraulic system and ensure the safety and reliability

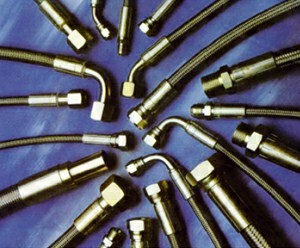

concrete pump hydraulic pipe joints
Hydraulic pipe joints

Hose joints:  American Eaton; Pipeline: Original from Italy.
A set of these supported by Eaton.

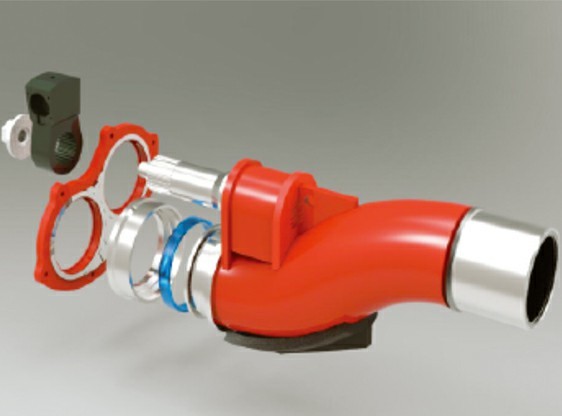

concrete pump s valve
S Valve

Brand: joint venture brand
Original: Germany
S tube valves are cast into shape with austenitic manganese steel, the quick wearing surface is welded with wear-resistant material, has dual advantages of anti-high pressure and anti-wearing.

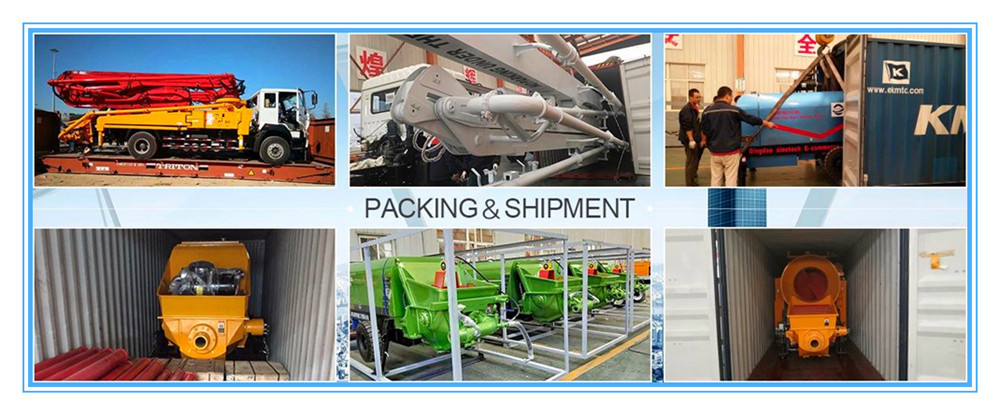

Package & Shipping :
concrete pump package and shipping

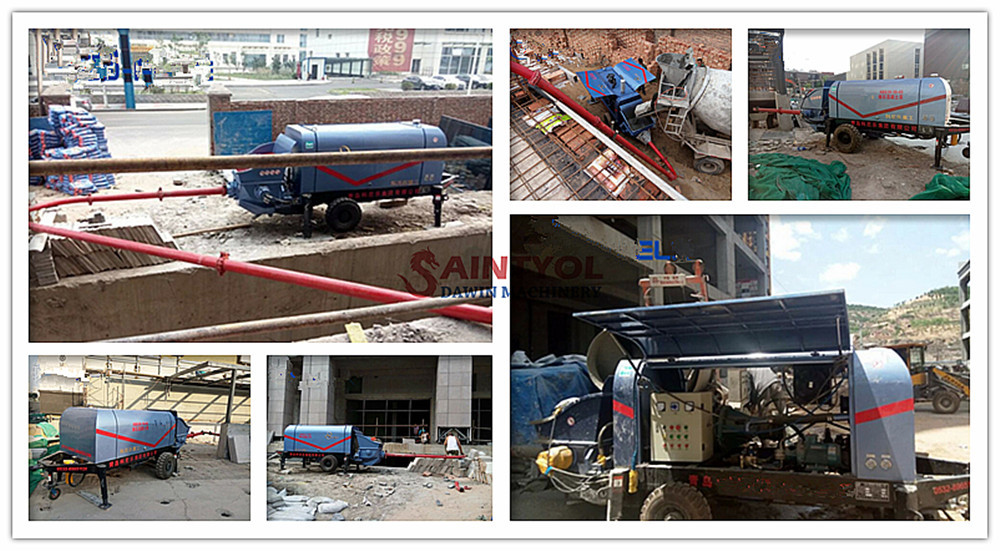

Job Site Performance:
concrete pump job site performance
Testing & Working Video:
Concrete Pump E-Brochure Download
Concrete Pump E-Brochure
