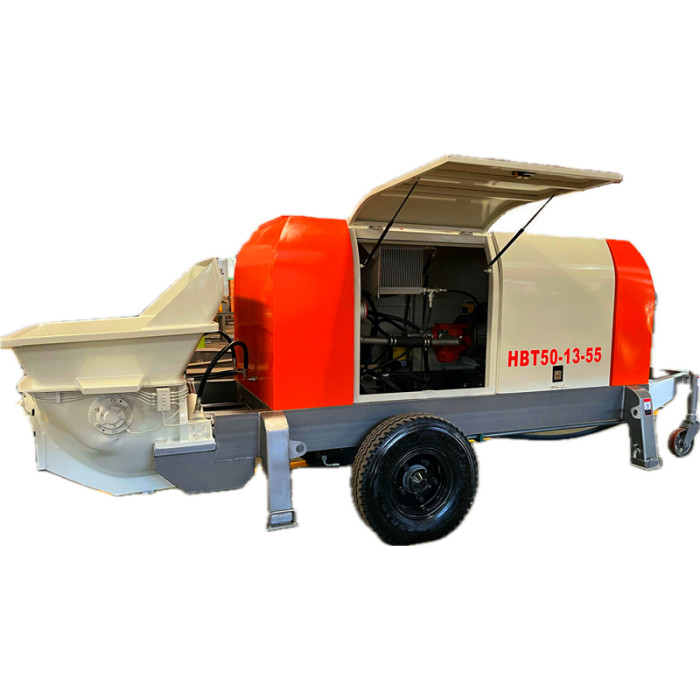

80m3/hr Trailer Concrete Pump With Diesel or Electric Power

80m3/hr Trailer Concrete Pump With Diesel or Electric Power

80m3/hr Trailer Concrete Pump With Diesel or Electric Power
80m3/hr Trailer Concrete Pump With Diesel or Electric Power80m3/hr Trailer Concrete Pump With Diesel or Electric Power80m3/hr Trailer Concrete Pump With Diesel or Electric Power80m3/hr Trailer Concrete Pump With Diesel or Electric Power80m3/hr Trailer Concrete Pump With Diesel or Electric Power
CategoriesTrailer Concrete Pumps
AlbumView larger image
BrandSaintyol DAWIN Machinery
ModelD/HBT80S
Pumping Capability80 cubic meter per hour
ValveS shape
Loading Hopper600L
Engine176KW Weichai Deutz or 132KW Motor
Pumping Horizontal Distance850m
Pumping Vertical250m
Delivery Pressure157 Bar
FOB portQingdao Shanghai Tianjin
Terms of PaymentL/C, T/T
Download DOC
Update Time2020-09-27
Detail Information
concrete pump 80 cub. m per hour
Instruction:


Concrete Pump was a kind of useful and efficient concrete high pressure transport pump, widely used in highway, railway, bridge, building, tunnels, ports, water conservancy and other projects of grouting pressure, grouting mortar, concrete, large particle slurry grouting, spraying work, has the working pressure, pumping ability strong, grouting with high efficiency, smooth coating, using solid, etc.


Saintyol DAWIN Machinery Concrete pump design is light, easy to move, suitable for small and middle construction projects.


The S-valve series concrete pump is a new generation product developed by combining latest technologies both at home and abroad.


The products have passed ISO9001-2008 quality management system certification and CE certification.


Our workers strictly control all the machining processes and assembly quality, give final test to every pump by simulation working conditions and overload experiments to ensure customers zero fault as first operation.

Features:
1. Concrete Pump Intelligent power control system to regulate the engine speed automatically, for smooth and efficient operation
2. Plunger pump with constant power, to ensure the efficiency of main engine
3. Good sealing S-valve, installed with floating wear resistant ring
4. High-quality wear resistant alloy components for long service-life
5. High delivery pressure for demand of high-rise and long distance projects
6.Air cooling system, without dependence of external water
7. Concrete pumps PLC system to ensure best control performance
8. With re-pumping function to smooth construction of better accessibility
9. Equipped with wired remote controller, easy to operate
Diesel DHBT80S-16-176 Specifications:

 Item

Unit

Parameter









Whole machines performance

Max. Theoretic delivery volume

m³/h

80

Max. Theoretic delivery pressure

Mpa

15.7

Max. Theoretic delivery height

m

250

Max. Theoretic delivery distance

m

850

Max. Delivery frequency

times/min

26(low pressure)16(high pressure)

Type of distribution valve



S tube valve

Specification of delivery cylinder

mm

Ф200×1650

Specification of main oil cylinder

mm

Ф140/90×1650

Oil tank capacity

L

420

Hopper capacity

L

600

Feeding height

mm

1400

Outlet opening diameter

mm

Ф150

Delivery pipe Inner diameter

mm

Ф125







Power system

Fuel consumption



228g/kwh

Diesel engine power

Kw

176 (Weichai Deutz Engine)

Rated speed

r/min

2300

Idling speed

r/min

800

Voltage of battery cell

V

24VDC(2 Pcs 12V110AhBattery series)

Fuel oil tank volume

L

150







Hydraulic system

Hydraulic oil circuit type



开式油路

Open circuit

Max. Oil pressure of main system

MPa

32

Max. Oil pressure of mixing system

MPa

14

Max. Mixing speed

r/min

24









Other parameters

Allowed range of concrete slump

mm

80200

Allowed max. Aggregate diameter

mm

Pebble 50crushed stone40

Dimension

(length×width×height)

mm

6600×1930×2190

Overall weight

Kg

6500

Pulling speed

Km/h

8

Electric HBT80S-16-132 Specifications:

 Item

Unit

 Parameters

Whole machines performance

Max. Theoretic delivery volume

m³/h

80

Max. Theoretic delivery pressure

Mpa

15.7

Max. delivery speed

times/min

26(low pressure)16(high pressure)

Max. theoretic delivery height

m

250

Max. Theoretic delivery distance

m

1000

Specification of delivery cylinder

mm

Φ200×1650

Specification of main oil cylinder

mm

Φ140/Φ90×1650

Oil tank capacity

L

420

Hopper capacity

L

600

Feeding height

mm

1400

Outlet Diameter

mm

Φ150

Delivery pipe Inner dia.

mm

Φ125

Power system

Main motor power

Kw

132

Rated voltage

V

380

Rated speed

r/min

1480

Hydraulic system

Hydraulic oil circuit type



Open circuit

Max.oil pressure of pumping system

MPa

32

Max. Oil pressure of mixing system

MPa

14

Max. Mixing speed

r/min

24

Other parameters

Allowed range of concrete slump

mm

80200

Max. Aggregate diameter

mm

Pebble 50crushed stone 40

Dimension(length×width×height)

mm

6170×1930×2100

Overall weight

Kg

5500

Pulling speed

Km/h

8

Main Parts:
concrete pump part
Electric Motor

Name: BEIDE Motor
Brand: Semens
Original: Germany
Famous engines at home and abroad, Yantai Motor and Beide Motor of Siements. which have a strong driving force, low fuel consumption and high efficiency.
concrete pump part
Diesel engine

Brand: Tianjin LOVOL/ Yuchai /Weichai/Cummins
Diesel engine adopts Tianjin LOVOL or Yuchai  or Weichai or Cummins as custom request, which has low energy consumption and high efficiency.
concrete pump part
Pumping System

Concrete pump pumping system is the core technologies of Saintyol DAWIN Machinery,

DN140mm, 180mm, 200mm and 230mm large diameter cylinder, absorb good, pumping large displacement.
concrete pump part
Main Oil Pump

Main oil pump adopts joint venture brand constant power variable plunger pump. Constant power control is effective to prevent the electromotor or diesel engine form overloading. It can withstand higher pressure and load than ordinary gear pump.
concrete pump part
Centralized lubricating system

The lubricant will be injected to the main oil line by the plunger pump and distributed to each lubrication point by the distributor. Point-to-point lubrication protects main components from wear and tear.
concrete pump part
Cooling System

It adopts dual-cooling system, with cooling and water cooling, not only for hot climate but also for cold climate; it can effectively control the oil temperature of hydraulic system and ensure the safety and reliability
concrete pump part
Hydraulic pipe joints

Hose joints:  American Eaton; Pipeline: Original from Italy.
A set of these supported by Eaton.
concrete pump part
S Valve

Brand: joint venture brand
Original: Germany
S tube valves are cast into shape with austenitic manganese steel, the quick wearing surface is welded with wear-resistant material, has dual advantages of anti-high pressure and anti-wearing.
Package & Shipping :
concrete pump package and shipping
Job Site Performance:
concrete pump job site performance
