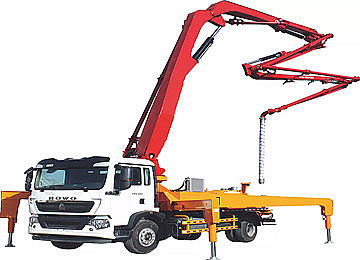

37m 5RZ Concrete Boom Pump Truck With Customized Chassis

37m 5RZ Concrete Boom Pump Truck With Customized Chassis
37m 5RZ Concrete Boom Pump Truck With Customized Chassis
37m 5RZ Concrete Boom Pump Truck With Customized Chassis37m 5RZ Concrete Boom Pump Truck With Customized Chassis37m 5RZ Concrete Boom Pump Truck With Customized Chassis37m 5RZ Concrete Boom Pump Truck With Customized Chassis37m 5RZ Concrete Boom Pump Truck With Customized Chassis
CategoriesConcrete Boom Pump Truck
AlbumView larger image
BrandSaintyol DAWIN Machinery
ModelKNL5202THB 37-5RZ
Max. Theor. Output(high/low pressure)66/111 Mpa
Rated Working Pressure32Mpa
Oil Cylinder Dia.×Strokeφ125×1400
Concrete Cylinder Dia.×Strokeφ230×1400
Placing Boom Structure Type37-5RZ
Max. Placing Height36.1
Horizontal Placing Radius32.6
Placing Depth25.5
Chassis ModelHOWO, ISUZU, Benz etc
Drive DirectionLeft or Right in option
FOB portQingdao, Shanghai, Tianjin
Terms of PaymentL/C, T/T
Update Time2020-02-29
Detail Information
Instruction:

Saintyol DAWIN Machinery concrete pump trucks are competitive products designed by Saintyol DAWIN. it is high reliability, high efficiency, high security, high durability at an organic whole, which with reasonable matching on Chassis, power, electrical, hydraulic, pumping system. Jib structures are flexible, the trucks move easily, safe and stable.



Saintyol DAWIN Produce 30m to 63m concrete pump truck, full range pumping capacity and boom length to meet different meet in concrete pumping projects.CE, ISO, CCC, BV, all authorized certificates, excellent quality with favorable price, welcome contact us for detailed information.

Specifications:

 Model

KNL5231THB 37-5RZ

Item

 Unit

 Parameter

Pumping System

Max. Theoretical Concrete Output (H/L Pressure)

m3/h

66/111

Max. Theoretical Output Pressure (H/L Pressure)

MPa

10/6

Rated Working Pressure

MPa

32

Pumping Frequency (H/L Pressure)

min-1

19/32

Hopper Capacity

L

600

Feeding Height

mm

1200

Hydraulic System Mode



Open Loop

Distribution Valve Mode



S Valve

Oil Cylinder Diameter × Stroke

mm

Φ125×1400

Concrete Cylinder Diameter × Stroke

mm

φ230×1400

Hydraulic Oil Cooling



Air Cooling

Recommended Concrete Slump

cm

12~23

Max. Aggregate Dimension

mm

40

Placing Boom

Structure Type



37-5RZ

Max. Placing Height

m

36.1

Max. Placing Radius

m

32.6

Max. Placing Depth

m

25.5

Slewing Angle



±270° (540°)

Delivery Pipe Diameter

mm

125

End Hose Length

mm

3000

Min. Height Of Opening Placing Boom

mm

9000

Outriggers Span (Front × Rear × Side)

mm

6140×7606×8446

Chassis & The Whole Machine

Chassis Model



ZZ5231N521GE1

Wheelbase

mm

5200

Engine Model



MC07.31-50

Engine Power

KW

228KW

Fuel Tank Volume

L

400

Tail Gas Exhaust Standard



EURO V

Overall Dimension (L x W x H)

mm

9840x2496x3870

Others

Lubrication Mode



Manual Hydraulic Dual Purpose Synchronous Lubricating Pump

Hydraulic Oil Tank Volume

L

500

Control Mode



ManualRemote Control

Max. Water Tank Pressure

MPa

0.8

Water Tank Volume

L

400

Concrete Pipeline Cleaning Mode



Water/Dry Cleaning

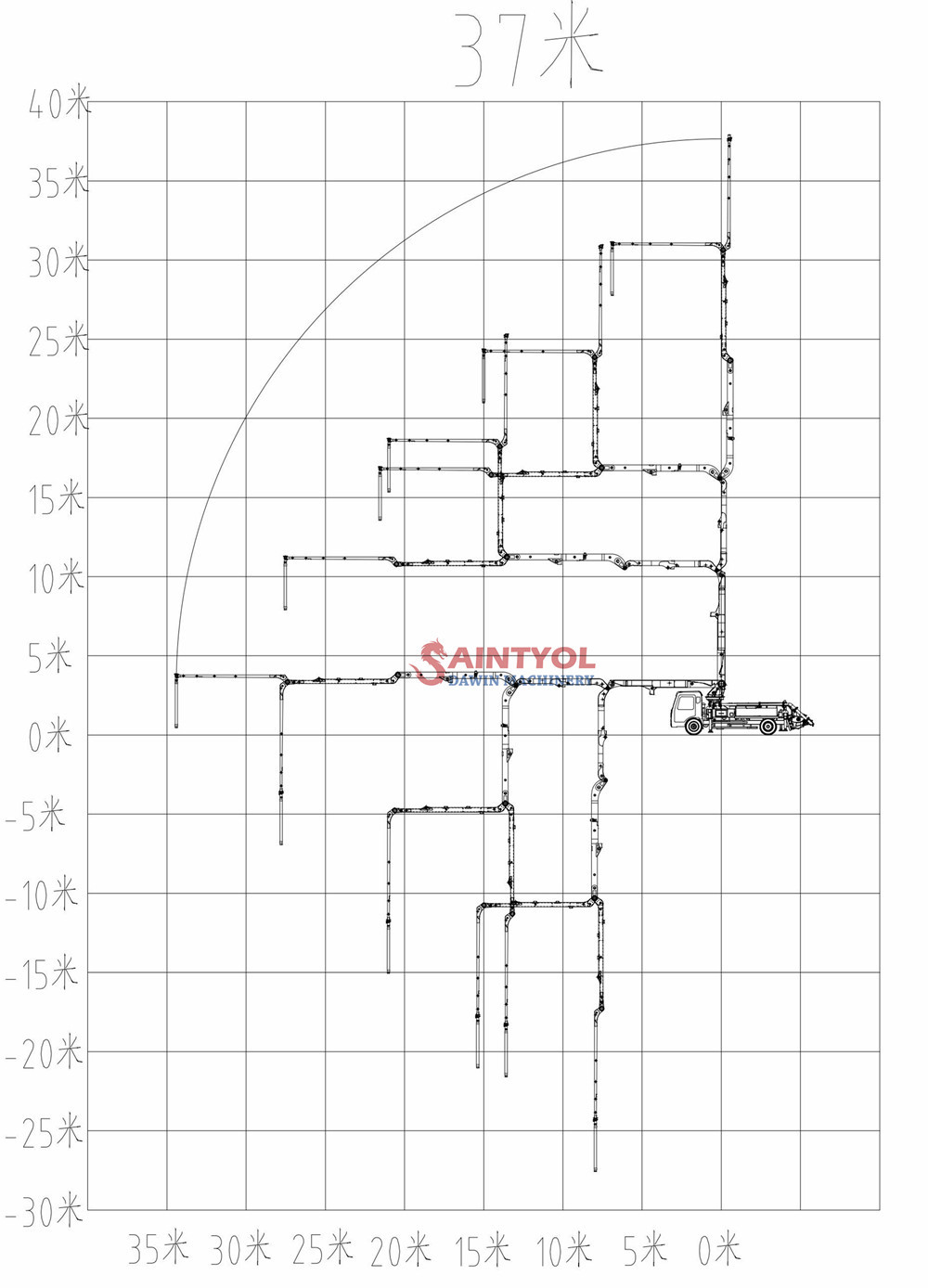

Working Range:

Main Parts:

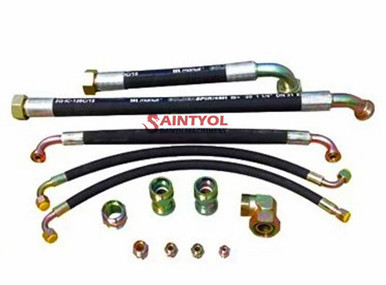

Hydraulic rubber hose joints
The hydraulic rubber hose joints are products of American Eaton, insuring the safety and no leakage of hydraulic system.

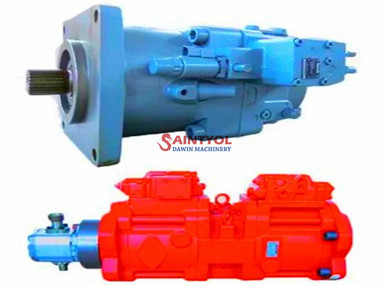

Main oil pump
Main oil pump adopts REXROTH or Japanese KAWASAKI variable plunger pump to insure system stable and reliable, with functions of overpressure and overflow to effectively protect main oil pump and diesel engine.

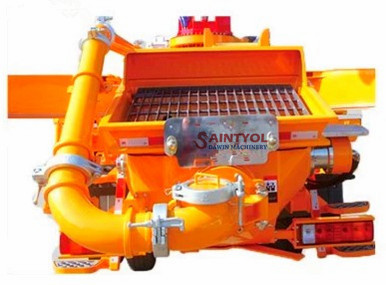

Hopper
Latest version whole stamping hopper is new optimization on inner line, suction rate improved by 20%, no sticking materials, easy to clean.

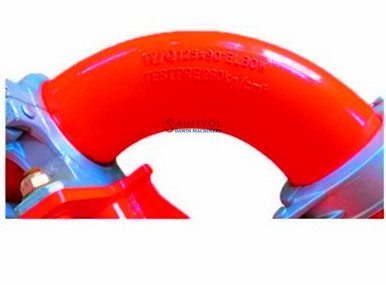

Pumping Pipeline System
Pumping pipeline adopt composite double wear-resisting materials,wear resistation degree can reach 50,000 cublic meters.(m³)
Pumping hydraulic system
Overall hydraulic control system and oil pressure signals make operation more simple and reliable,improve the swing cylinder reversing speed and reduce the reversing impact.At the same time,the large oil cylinder reversing moment action could be accelerated and the concrete cylinder would be fully filled, making concrete output continuous and smooth.

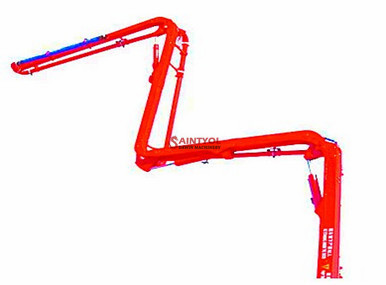

Jib structure system
Jib structure system is based on the finite element analysis, dynamic analysis and test, and the accurate date support.High strength low alloy steel plate,all materials and welding line by 100% non-destructive technology ensure the jib structure reasonable and highly reliable.


Hydraulic system of jib structure and support legs
Electro-hydraulic and manual multiple valves ensure wireless remote control and manual control in case of emergency.

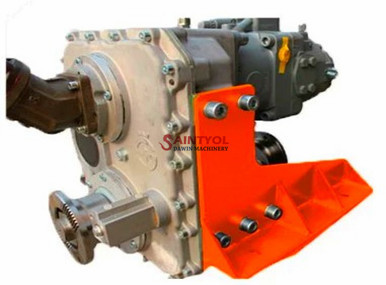

Transfer case
We adopt imported transfer case.
Feartures:

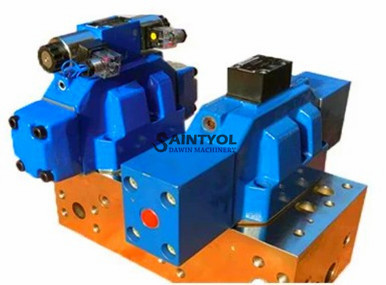

1.EquipΦ230mm cylinder, large displacement (125m3 / h) pumping system, the material absorption is more than 88%, the number of commutation with the same displacement is low, and the wearing parts life is long;

2.The pumping system adopts electronically controlled commutation. The pumping commutation is quick and accurate, for system impact is small, and the actual pumping efficiency is increased by more than 7% over the conventional hydraulically controlled commutation system.

3.Adopts industrial large pump truck integrated valve, the line is simple, the pressure loss is small, compared to the conventional valve energy saving 17%. Hydraulic systems are not prone to heat.

4.Equipped high and low pressure pumping switching function, can pump large displacement, high speed and high efficiency. When encountering poor materials, high-pressure pumping is not easy to block the pipe.

5.Equipped with full power and energy-saving dual pumping mode, the fuel consumption is lower. The engine speed can be adjusted in conjunction with the pumping volume.

6.Equipped with a dedicated central controller for construction machinery, a large-size high-definition display, and LCD remote control. The performance of the control system is stronger and the operation is more user-friendly.

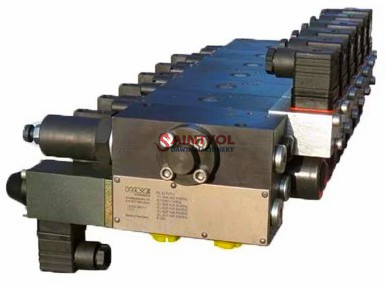

7.Adopts imported multi-way valve. and the boom is particularly maneuverable, achieve man-machine integration, the boom can be immediately and steadily stopped. The end hose is positioned quickly and accurately.
