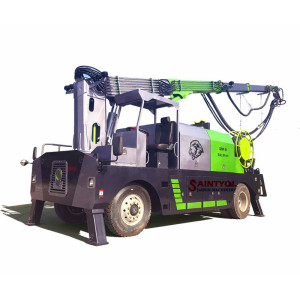

20m3/hr Wet Concrete Robot Spraying Machine, Shotcrete Pump

20m3/hr Wet Concrete Robot Spraying Machine, Shotcrete Pump

20m3/hr Wet Concrete Robot Spraying Machine, Shotcrete Pump
20m3/hr Wet Concrete Robot Spraying Machine, Shotcrete Pump20m3/hr Wet Concrete Robot Spraying Machine, Shotcrete Pump20m3/hr Wet Concrete Robot Spraying Machine, Shotcrete Pump20m3/hr Wet Concrete Robot Spraying Machine, Shotcrete Pump20m3/hr Wet Concrete Robot Spraying Machine, Shotcrete Pump
CategoriesConcrete Spraying Machines
BrandSaintyol DAWIN Construction Machinery Manufacturer
ModelQKSP-20
Max. theoretic concrete spray volume20 m³/h
Spraying Height10m
Spraying Width18m
Engine62.5 KW
Max Driving Speed30Km/hr
Max. stone diameter≤20 When spray
Delivery Cylinder DiameterΦ140mm
FOB portQingdao
Download
Update TimeDec 3,2024
Detail Information
wet concrete spraying machine robot shotcrete pump truck
Instruction:

QKSP-20 concrete wet spray trolley is the most compact and flexible engineering chassis self-propelled truck mounted wet shotcrete trolley manipulator in Chinese market. It has many advantages such as compact structure, reasonable layout, powerful function, beautiful appearance, perfect performance, flexible boom, wide operating range and high reliability and so on.


Chassis:
The wet concrete spraying truck cab is centered, the wheelbase is only 2.4 meters. The front axle has a swinging suspension. It has good driving performance with wide tires. The approach angle and departure angle can reach 25°, and the ground clearance is up to 0.4 meters. The whole vehicle is powered by Yuchai 62.5KW diesel EFI engine. The walking system adopts hydrostatic drive system. The steering system adopts multi-wheel steering control system, which has various steering modes, such as front wheel steering, four-wheel steering, crab walking steering and so on. The vehicle can be flexibly turned and driven in a small space.

Features:
Boom:
The shotcrete pump boom adopts a folding + swivel + telescopic structure. The boom manipulator has seven-axis freedom. It can perform precise head-pointing spraying and Th-like brushing spraying in all directions. After fully retracted and then rotated, the boom slewing radius is only 1.8m, which enables the boom to perform 360° unobstructed rotation in a small space. The maximum front spraying distance can reach 8m when full extension, the maximum spraying height can reach 10m, and the maximum spraying width can be up to 18m and the maximum spraying depth is up to 4.5m.

As length 5m, width 1.85m, height 2.6m concrete wet spray trolley, it can meet 3M×3M - 12M × 8M (W×H) medium and small section tunnels, roadways, slopes, culverts, mines and other concrete spray anchor support operations, the vehicle has some features such as flexibility, fast concrete spraying, low rebound, simple operation, labor saving and so on. The equipment is a flexible, reliable and cost-effective concrete wet spray manipulator.
Areas of application:
The SAINTYOL DAWIN Machinery wet concrete shotcrete pump are based on technical pioneer achievements. They keep researching and developing new technology - and have been doing so for many years!They are the national initiative equipment for fine stone concrete conveying and won two national patents.
·Fine stone concrete conveying
·Floor heating construction
·Tunnel and underground construction
·Mortar conveying
·Used as spray pump when Installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying
QKSP-20 wet concrete shotcrete pumpare applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power, mining and national defense.
QKSP-20 Specifications:



System

Unit

specification

Boom parameters



Boom structure



Folding telescopic rotation

Jet vertical height

M

10

Jet horizontal width

M

18

Jet depth

M

4.5

Big arm pitch angle

°

60°

Manipulator horizontal angle

°

360°

Manipulator swing angle

°

240°

Main pump displacement

Ml/r

85

Boom control mode



Remote control (Electric proportional control)

Chassis parameter

Walking mode



Wheel type

Driving mode



Static hydraulic drive

Engine

kw

62.5kw/2200rpm

Max driving speed

Km/h

30

Climbing speed

%

40

Drive axle



Front and rear steering drive axle

Parking brake



Wet brake

Service brake



Hydraulic clamp disc braking

Tyre



Wide cross-country tire

Jet performance parameters

Max. Theoretical jet capacity

M3/h

20

Max. Theoretical delivery pressure

Mpa

8 (adjustable)

Max. Pumping time

t/min

25

25 (adjustable)

Distribution valve form



S tube valve

Delivery cylinder diameter

mm

Φ140

Outlet diameter

mm

125

Filling height

mm

1350

Allowable max. Aggregates diameter

mm

20

Hydraulic system

Hydraulic system mode



Open system

Main system max. Oil pressure

MPA

32

Hydraulic oil capacity

L

160

Other parameter

Accelerator tank capacity

L

400

Accelerator weighing system



Remote non-polar speed regulation + automatic control

Fuel oil tank capacity

L

100

Accelerator pump

L/H/Mpa

400/1.0

Front leg span

M

2.7

Dimension (L*W*H)

mm

5000*1850*2600

Main Parts:
Swing Arm

the boom can swing ± 45 °. can increase the flexibility of the jet mechanism to improve the single sprayable area, not only the spray surface is more smooth, beautiful, but also reduce the turntable rotation times, increase the stability of the boom
Diesel engine

Brand: Tianjin LOVOL/ Yuchai /Weichai/Cummins
Diesel engine adopts Tianjin LOVOL or Yuchai  or Weichai or Cummins as custom request, which has low energy consumption and high efficiency
Pumping System

Concrete pump pumping system is the core technologies of Saintyol DAWIN Machinery,

DN140mm, 180mm, 200mm and 230mm large diameter cylinder, absorb good, pumping large displacement.
Main Oil Pump
Main oil pump adopts joint venture brand constant power variable plunger pump. Constant power control is effective to prevent the electromotor or diesel engine form overloading. It can withstand higher pressure and load than ordinary gear pump.
Cordless Remote Control

Remote control adopts domestic well-known brands, remote control distance, strong signal, no dropped calls, serial number phenomenon.The electrical components are all made by international famous brands such as Schneider, Siemens.
Cooling System

It adopts dual-cooling system, with cooling and water cooling, not only for hot climate but also for cold climate; it can effectively control the oil temperature of hydraulic system and ensure the safety and reliability
Hydraulic pipe joints

Hose joints:  American Eaton; Pipeline: Original from Italy.
A set of these supported by Eaton.
S Valve

Brand: joint venture brand
Original: Germany
S tube valves are cast into shape with austenitic manganese steel, the quick wearing surface is welded with wear-resistant material, has dual advantages of anti-high pressure and anti-wearing.
Drawing :
wet concrete spraying machine robot shotcrete pump
concrete robot spraying machine shotcrete pump
mobile wet concrete spraying machine shotcrete pump robot
Job Site Performance:
wet concrete shotcrete pump spraying machine
