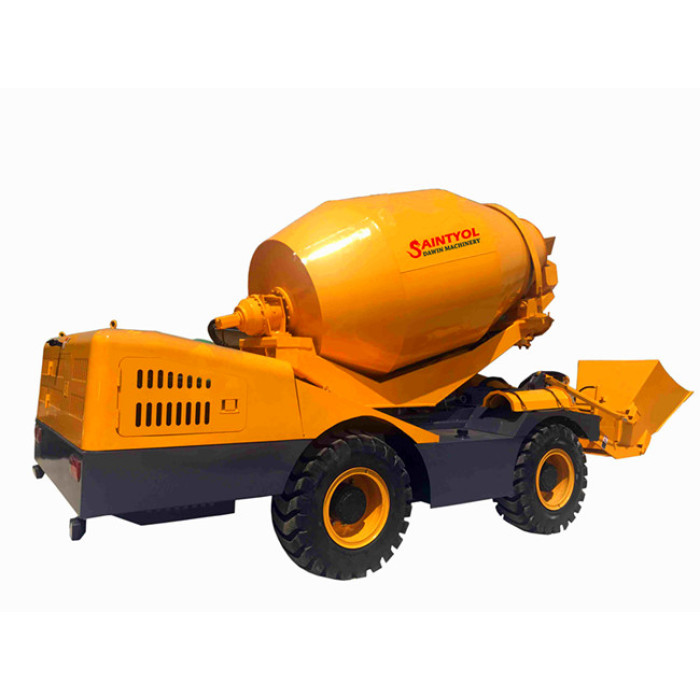

1.6m3 Automatic Self-loading Concrete Mixer Truck

1.6m3 Automatic Self-loading Concrete Mixer Truck

1.6m3 Automatic Self-loading Concrete Mixer Truck
1.6m3 Automatic Self-loading Concrete Mixer Truck1.6m3 Automatic Self-loading Concrete Mixer Truck1.6m3 Automatic Self-loading Concrete Mixer Truck1.6m3 Automatic Self-loading Concrete Mixer Truck1.6m3 Automatic Self-loading Concrete Mixer Truck
CategoriesSelf-loading Concrete Mixer
BrandSaintyol DAWIN Construction Machinery Manufacturer
ModelHY1.6
Output Capability1.6m³ Per Tank
CertificatesCE
TyreOff Road
Loading Bucket600L
EngineCummins or others
Weighing SystemElectrical Auto
Hydraulic FittingsRexroth or others
Drum Tank Rotation270 degree
FOB portQingdao
Terms of PaymentL/C, T/T
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information
1.6 cubic meter automatic self loading concrete mixer truck
Instruction:
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

Features :
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading concrete mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
Specifications:

Name



Item



Specification



Net

5500 KG

Transmission

Full Hydraulic

4 WD

Brake

Air Brake

Chassis

Off-road

Loader bucket

capacity

0.4m3

Control

Hydraulic

Tilt angle

20%



Speed

High

0-25KM/H

Low

0-9KM/H

Mini turning radius

4.5M/R

 Engine

Type

Yunnei

Rated Power/RPM

60KW/2200RPM

Max.Torque/RPM

360N.M/1400RPM

Cylinder

4

Starter

Electric

Cooling type

water cooling



Maxing Drum

Drum capacity

2.2M3

Mixing capacity

1.6M3

Bank Angle

16 °

Chute

Swing Angle

30°

 Angle control

 Hydraulic

 Loader control

 Hydraulic 4 way stick

Over size

6180*2270*2630(3440)mm

Main Parts:
self loading concrete mixer drive system
Efficient hydraulic drive system
As the complete vehicle is equipped with four-wheel drive,it can be used for efficient and stable concrete production in harsh working conditions.
self loading concrete mixer mixing technology
Four-dimensional mixing technology
Large rise angle is designed at from cone to provide uniform mixing,with changed on a slump change at all stages of ≤5%.
Unique continuous trace design is used,with residual rate≤0.4%.
self loading concrete mixer operation system
Safe and flexible operation system
Longitudinal resistance-free design is used,to provided more flexible manipulation.
Front and rear linkage double-limit structure is used,to provide higher safety.
self loading concrete mixer water supply system
Convenient water supply system
Integrated control is used with one-inlet and multiple-outlet applied,convenient and fast.
Liner water tank structure is used with service life increased by 50%.
automatic self loading concrete mixer truck advantages
automatic self loading concrete mixer working with concrete pump
automatic self loading concrete mixer mixing capability models
Packing & Shipping:
china automatic self loading concrete mixer package and shipping
Job Site Performance:
automatic self loading concrete mixer job site performance
Testing Video & Working Video:
Auto Self-Loading Concrete Mixer E-Brochure Download
Auto Self-Loading Concrete Mixer E-Brochure
