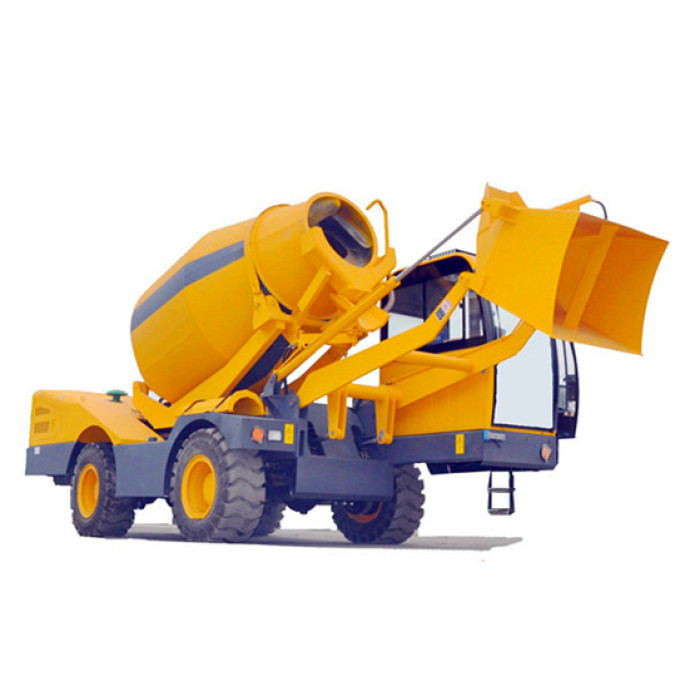

5.0m³ Automatic Self-loading Concrete Mixer Truck

Categories	Self-loading Concrete Mixer
Brand	Saintyol DAWIN Construction Machinery Manufacturer
Model	HY5.5
Output Capability	22m³-27m³
Certificates	CE
Tyre	Off Road
Loading Bucket	600L
Engine	Yuchai
Weighing System	Electrical Auto with Printer
Hydraulic Fittings	Rexroth or others
Drum Tank Rotation	270 degree
FOB port	Qingdao
Terms of Payment	L/C, T/T
Download DOC
Update Time	Apr 27,2024

Contact Now

Favorites

Detail Information

2.2 cubic meter self loading concrete mixer truck

Instruction:

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

Features :

1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.

2. The self loading concrete mixer for sale has easy operation, high working efficiency, high mixing effect.

3. It has independent water supply system, which can ensure the high quality of concrete.

4. It just need one operator to drive, load, and mix raw material while moving it.

Specifications:

名称 Name	项目 Item	参数 Specification
整车	传动形式 Transmission	全液压传动 Full Hydraulic
		4轮驱动 4 WD
	制动形式 Brake	Air Brake 气刹
	底盘 Chassis	Off-road 越野
	料斗 Loader bucket	容量 capacity	0.6m3
		控制形式 Control	液压控制阀门 Hydraulic
	爬坡角度Tilt angle	30%
	行驶速度Speed	高速 High	0-25KM/H
		低速 Low	0-20KM/H
	最小转弯半径Mini turning radius	6.5M/R
	轮胎型号 Tyre model	16 /70-20
发动机 Engine	型号 Type	Yuchai
	额定马力/转速Rated Power/RPM	110KW/2200RPM
	最大扭矩/转速 Max.Torque/RPM	460N.M/1400RPM
	气缸数量Cylinder	4
	启动方式 Starter	电启动 Electric
	冷却方式Cooling type	水冷 water cooling
搅拌性能 Maxing Drum	出料容量 Output capacity	5.0M3
	倾斜角 Bank Angle	16 °
	转动角度 Rotation Angle	19-21R/min
溜槽Chute	转动角度 Swing Angle	≥60°
	角度调节 Angle control	液压控制 Hydraulic
	尺寸 Size	Long（长）:90cm
Loader 上料机构	计量方式Weighing model	电脑参数自动配比 computer control
		Concrete Standard 混凝土标号	C15.C20.C25 C30
	计量精度 Accuracy	水泥 Cement	≤±2%/time
		相对误差 Relative Error	≤±3%/time
		水 water	≤±1%/time
		外加剂 Additive	≤±1%/time
		掺合料 Admixture	≤±2%/time
操纵性能 Loader control	液压电控操作 Hydraulic 4 way stick
液压油箱容量Hydraulic oil tank	240L
水箱容量Water tank	550L
外形尺寸 Over size	820027003400mm
自重 Self weight	9600KG

Main Parts:

self loading concrete mixer driving system

Efficient hydraulic drive system

As the complete vehicle is equipped with four-wheel drive,it can be used for efficient and stable concrete production in harsh working conditions.

self loading concrete mixer truck mixing technology

Four-dimensional mixing technology

Large rise angle is designed at from cone to provide uniform mixing,with changed on a slump change at all stages of ≤5%.

Unique continuous trace design is used,with residual rate≤0.4%.

self loading concrete mixer operation system

Safe and flexible operation system

Longitudinal resistance-free design is used,to provided more flexible manipulation.

Front and rear linkage double-limit structure is used,to provide higher safety.

self loading concrete mixer water supply system

Convenient water supply system

Integrated control is used with one-inlet and multiple-outlet applied,convenient and fast.

Liner water tank structure is used with service life increased by 50%.

self loading concrete mixer truck advantages

self loading concrete mixer truck working with stationary concrete pump

self loading concrete mixer mixing capability models

Packing & Shipping:

self loading concrete mixer package and shipping

Job Site Performance:

Testing Video & Working Video:

Auto Self-Loading Concrete Mixer E-Brochure Download
