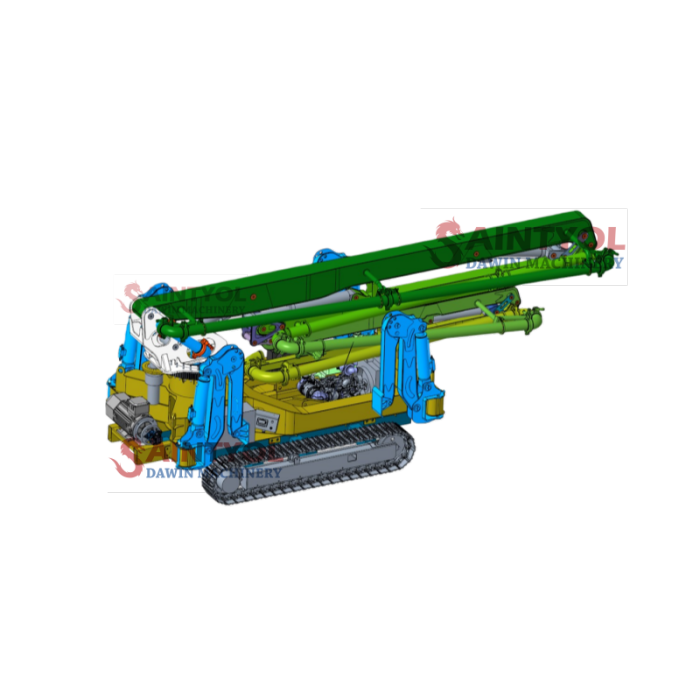

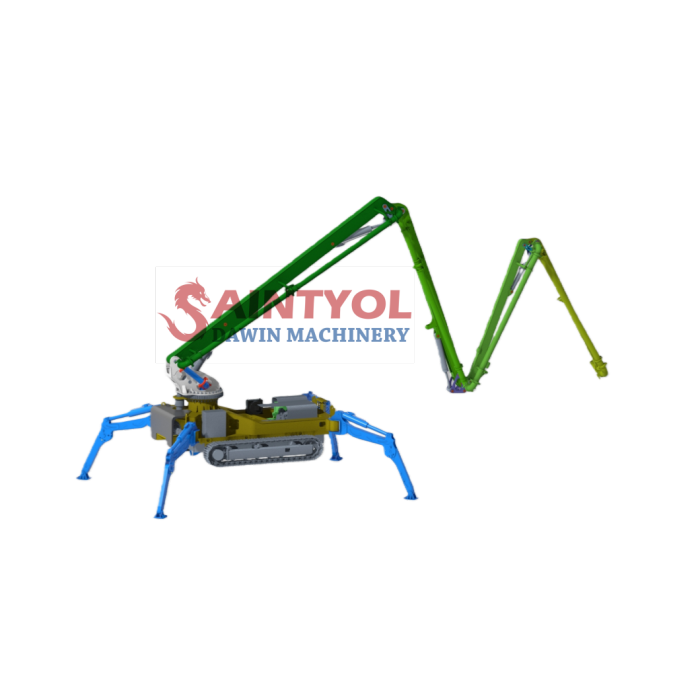

18m "M" shape 4 Sections Crawler Self-walking Mobile Spider Concrete Placing Boom

Name: 18m "M" shape 4 Sections Crawler Self-walking Mobile Spider Concrete Placing Boom
Brand: Saintyol DAWIN Machinery
SKU: 18551794
Rating: 4.75 (10 reviews)

Share
Categories	Concrete Placing Boom
Brand	Saintyol DAWIN Machinery
Model	CHGY18
Motor	22KW
Control	Wireless Remote
Placing Radius	18m
Boom Sections	4
Certificates	CE , SafeWork
Weight	8400kg
FOB port	Qingdao
Terms of Payment	L/C, T/T
Download

Contact Now

Favorites

Detail Information

HGY17 spider hydraulic concrete placing boom

17m mobile hydraulic spider concrete placing boom

Instruction:

This kind of 18m crawler self-walking mobile spider concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.

1. CHGY full hydraulic crawler mobile spider concrete placing boom can be placed according to needs of field pouring;

2. Compact structure, light weight, and can be hoisted and transported as a complete part;

3. Flexible, crawler mobile placing boom is being widely used and applicable for complex construction site;

4. Easy operation, safe and reliable, economical and practical.

5. Crawler self walking system could be customized in full diesel power or electric motor power.

Features:

A.Auto robot cordless remote control system.

B.Proportional valve, manual levers and control system in options to ensure the placing boom could work normally in any conditions when meet problems or not.

C.Crack detection in welding manufacturing process to keep each concrete placing boom would be in safe working on job sites before shipping.

D. Labors saving. The robot automatic crawler self walking concrete placing boom with cordless remote control foldable arms section, 13m is "Z" shape, 15m and 17m 18m are "R" shape, and 18m 4 sections "M" and 21m and 23m are 4 sections "M" folding, very effective in light weight and labor saving on job sites.One man to control it easily.

E.Less wearing parts.There is no extra wearing parts to the crawler mobile concrete placing booms except for 1 year life changing the hydraulic oil filter and the delivery pipes in 50000m3 and more.

F.Easier transportation and installation. The trailer mobile concrete placing boom could be separated in several smaller pares to be lifted by crane on job sites and installed in short time.

G.Concrete pump partner. the concrete placing boom is the right end solution of concrete pumping system, it could be moved and touch to the every place sites on the jobs platforms.

H.Short manufacturing time.Trailer mobile concrete placing from Saintyol DAWIN machinery there would be common stocks to HGY13 HGY15 and HGY17 models, orders could be short into 15 days or less.

Specification:

CONCRETE PIPE DIAMETER	Φ125mm
PLACING RADIUS	18m
BOOM ARM ELEVATION TRAVEL	-4°～84°
SLEWING RANGE	350°
RUBBER HOSE	3m
HYDRAULIC SYSTEM POWER	22KW
WORKING PRESSURE	20Mpa
SLEWING SPEED	0.2～0.3r/min
TOTAL WEIGHT	8400㎏
COUNTERWEIGHT	None
OUTRIGGER SPAN	6394*7400mm
EACH BOOM SECTION LENGTH	6100/4800/3900/4000MM
CORNER	84/180/180/180
