25 m³/h 35m3/hr 75m3/hr Mobile Concrete Batching Plant

25 m³/h 35m3/hr 75m3/hr Mobile Concrete Batching Plant

25 m³/h 35m3/hr 75m3/hr Mobile Concrete Batching Plant
25 m³/h 35m3/hr 75m3/hr Mobile Concrete Batching Plant25 m³/h 35m3/hr 75m3/hr Mobile Concrete Batching Plant25 m³/h 35m3/hr 75m3/hr Mobile Concrete Batching Plant25 m³/h 35m3/hr 75m3/hr Mobile Concrete Batching Plant25 m³/h 35m3/hr 75m3/hr Mobile Concrete Batching Plant
CategoriesConcrete Batching Plant
BrandSaintyol DAWIN Construction Machinery Manufacturer
ModelYHZS25 35 50 60 75 90
MixerJS500L Twin-Shaft Concrete Mixer
Aggregates Bins2*4m3 or 3*4m3
Maximum size of aggregate60/80mm
Discharge height3.8m
Motor62KW
Power380V or as your requirement
Download DOCpdf icon
Update TimeApr 20,2024
Contact Now
Favorites
Detail Information

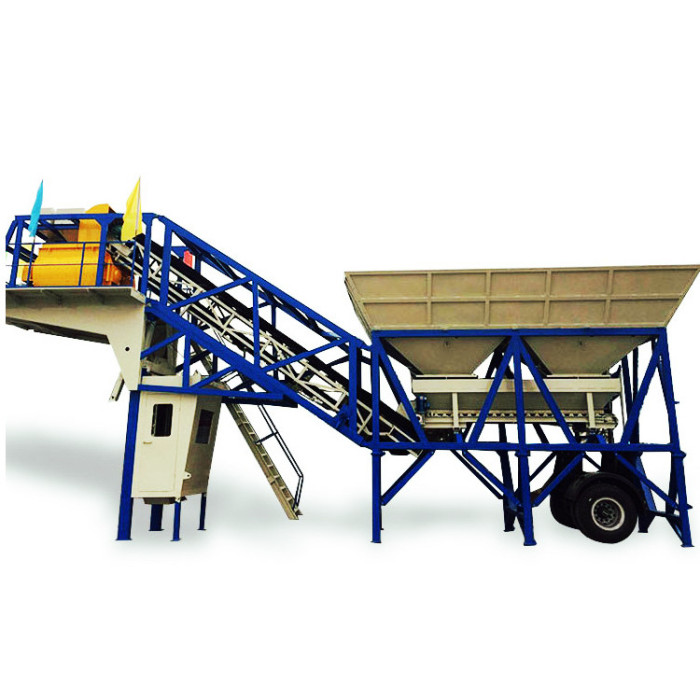

trailer mobile batching plant
Instruction:


Hauling type mobile concrete mixing plant or say mobile concrete batching plant adopts the semi-pulling design. With running system and standard traction pin, YHZS series hauling type mobile concrete mix plant can be dragged by a tractor, which enables convenient and quick movement and installation without foundation and debugging. It takes only one day from installation to operation.




YHZS mobile batching plant is  widely used for construction projects' concrete mixing, the concrete mixer is new designed spiral compound blades concrete mixer, the aggregate supply is with belt conveyor, the aggregate batching system can be 2 bins or 4 bins, with auto weighting, fully auto-control with SIEMENS brand PLC.




The mobile batching plant is widely sale in Philippines, South Africa, Russia, Australia, Greece, Sri Lanka and etc. countries.

Main Features:
1.  Less installation area requirement with compact design.

2.  Short and Easy installation-uninstallationand operating (2-3 days to finished installation.

3.  Less foundation cost, just need the ground hard and flat.

4.  Less transportation costs( Standart Configuration can be transported by just one truck-trailer.
Specifications:

 Model

YHZS25A

(m3/h) Max theory productivity

25

Mixer

JS500

(m3) Storage hopper capacity

2×4

(mm) Maximum size of aggregate

60/80

(m) Discharge height

3.8

(m) Charge height

3.1

(%) Aggregate measuring accuracy

±2

(%) Cement measuring accuracy

±1

(%) Fly ash measuring accuracy

±1

(%) Water measuring accuracy

±1

(%) Additive measuring accuracy

±1

(kw)Power of supply (kw)

62

ACPower voltage (V) /frequency (HZ)（optional)

AC380/50

(m3/h)Water flow((m3/h)

6

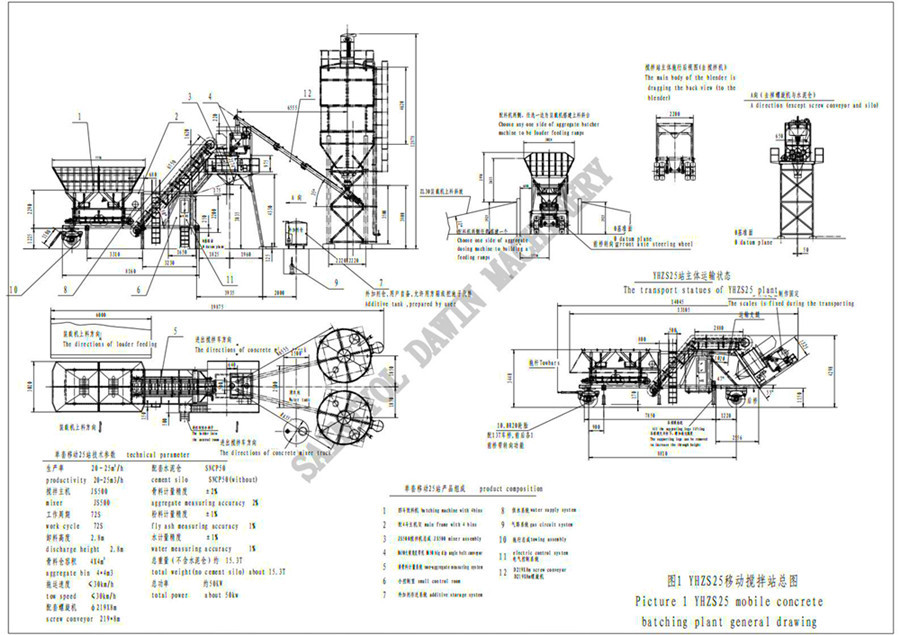

Reference Drawings:
Models In Options:
trailer mobile batching plant mixing capability models
Main Parts:
mobile batching plant main parts
Package & Shipping:
mobile batching plant fitting containers
Works:
mobile concrete batching plant job site performance
Job Site Video:
