Stationary Fixed Batching Plant, Ready Mixed Concrete Batching Plant

Stationary Fixed Batching Plant, Ready Mixed Concrete Batching Plant

Stationary Fixed Batching Plant, Ready Mixed Concrete Batching Plant
Stationary Fixed Batching Plant, Ready Mixed Concrete Batching PlantStationary Fixed Batching Plant, Ready Mixed Concrete Batching PlantStationary Fixed Batching Plant, Ready Mixed Concrete Batching PlantStationary Fixed Batching Plant, Ready Mixed Concrete Batching PlantStationary Fixed Batching Plant, Ready Mixed Concrete Batching Plant
CategoriesConcrete Batching Plant
AlbumView larger image
BrandSaintyol DAWIN Machinery
ModelHZS
MixerJS Series Horizontal Twin-Shaft Concrete Mixer
Aggregates Bins2*4m3 or 3*4m3 or customized
Maximum size of aggregate60/80mm
Power380V or as your requirement
Output Capability25m3/hr to 240m3/hr
Download DOC
Update Time2020-09-18
Detail Information

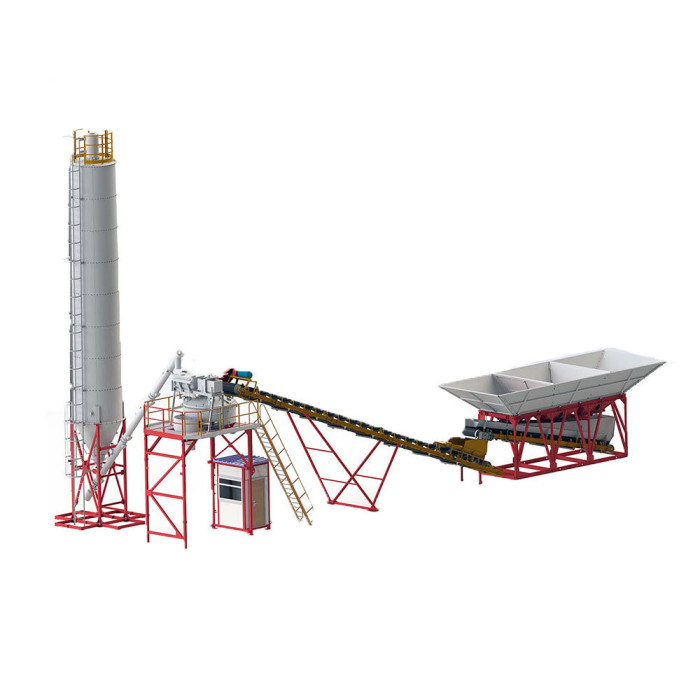

stationary fixed concrete batching plant
Instruction:


HZS series concrete batching plant belongs to compulsory and efficiency equipment, It includes JS concrete mixer, PLD batching machine,cement silo and control system. The main machine of this series use JS series double shaft compulsory mixer. It is widely used large and medium scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial used concrete.


Concrete batching plant is highly mechanized and automated, with convenient installation and high production efficiency. Excellent manufacturers can guarantee the quality of concrete and save customers a lot of cement or concrete.

Main Features:

1. Germany technology and Saintyol DAWIN mixer make the speed of mixing faster and the quality of concrete better.

2. The concrete batching plant control software is developed by Sauter company in Germany and Company, has the better performance and higher reliability.

3. The technology of feeding and auto-deducting have gained the national patent, which ensures that the dynamic weighing precision coincides with the national standard.

4. Fully automatic computer control and highclass weighing meter make the the fast calculating and high weighing precision.

5. Electric elements of France Schneider company, industrial control computer of   Taiwan Yanxiang company and the advanced manufacturing technology ensures the stability and reliability of the system.

6. Streamline design of control panel with condition indication and human-based design make the operation simple and management easier.

7. Four-picture long-distance supervisory and control make the mode of operation clearly.

8. Modulization design makes transport, installation and debugging easier.

9. With power-off protection when opened the door of service trunk, the maintenance is more safe.

10. The main building and the aggregate conveying system are complete shut-off structure, the effect of de-dusts exceeds the National standard.
Specifications:

Model

HZS25

Capacity

25m3/h

Twin Shaft Mixer Model

JS500

Mixer Capacity

0.5m³

Aggregate storage hopper volume

3m³x 3

Max. Aggregate Size (broken stone/pebble)

60/80mm

Loading Type of Aggregate to the Mixer

Skip Hopper

Aggregate Weighing

1500kg ±2%

Cement Weighing

450kg ±1%

Water Weighing

300kg ±1%

Additive Weighing

30kg ±1%

Control System

Full-automatic PLC+PC control

Discharging Height

3800mm (for customers choice)

Total Power

60kW

Total Weight (approximate)

15Tons

Overall Dimension (at work)(L×W×H)

21400×11500×16510mm

Cement Silo (optional)

Welded Type, 50Ton*1

Power (customized)

380V/50Hz/3 Phase

Models In Options:

Model

Max. output

Mixer model

Batching plant model

Discharging height

Working cycle time

Weighing accuracy

Dimention (mm)

HZS25

25 m³/h

JS500

PLD800

3800 mm

72 s

Aggregate    ±2%

Cement        ±1%

Water / Additive      ±1%

15100*8000*17245

HZS35

35 m³/h

JS750

PLD1200

3800 mm

72 s

Aggregate    ±2%

Cement        ±1%

Water / Additive      ±1%

            15000*12500*17245

HZS50

50 m³/h

JS1000

PLD1600

3800 mm

72 s

Aggregate    ±2%

Cement        ±1%

Water / Additive      ±1%

32201*16000*17245

HZS60

60 m³/h

JS1000

PLD1600

3800 mm

72 s

Aggregate    ±2%

Cement        ±1%

Water / Additive      ±1%

42580*22800*16430

HZS75

75 m³/h

JS1500

PLD2400

3800 mm

72 s

Aggregate    ±2%

Cement        ±1%

Water / Additive      ±1%

33091*16835*17245

HZS90

90-100 m³/h

JS1500

PLD2400

3800 mm

72 s

Aggregate    ±2%

Cement        ±1%

Water / Additive      ±1%

58555*12376*18704

HZS120

120 m³/h

JS2000

PLD3200

3800 mm

72 s

Aggregate    ±2%

Cement        ±1%

Water / Additive      ±1%

58555*12376*18704

HZS180

180 m³/h

JS3000

PLD4800

3800 mm

72 s

Aggregate    ±2%

Cement        ±1%

Water / Additive      ±1%

60120*13700*18704

Main Parts:
concrete batching plant main parts
Package & Shipping:
concrete batching plant package and shipping
Works:
concrete batching plant job site performance
concrete batching plant
